Seat Belt Retractor
Seat Belt Retractor

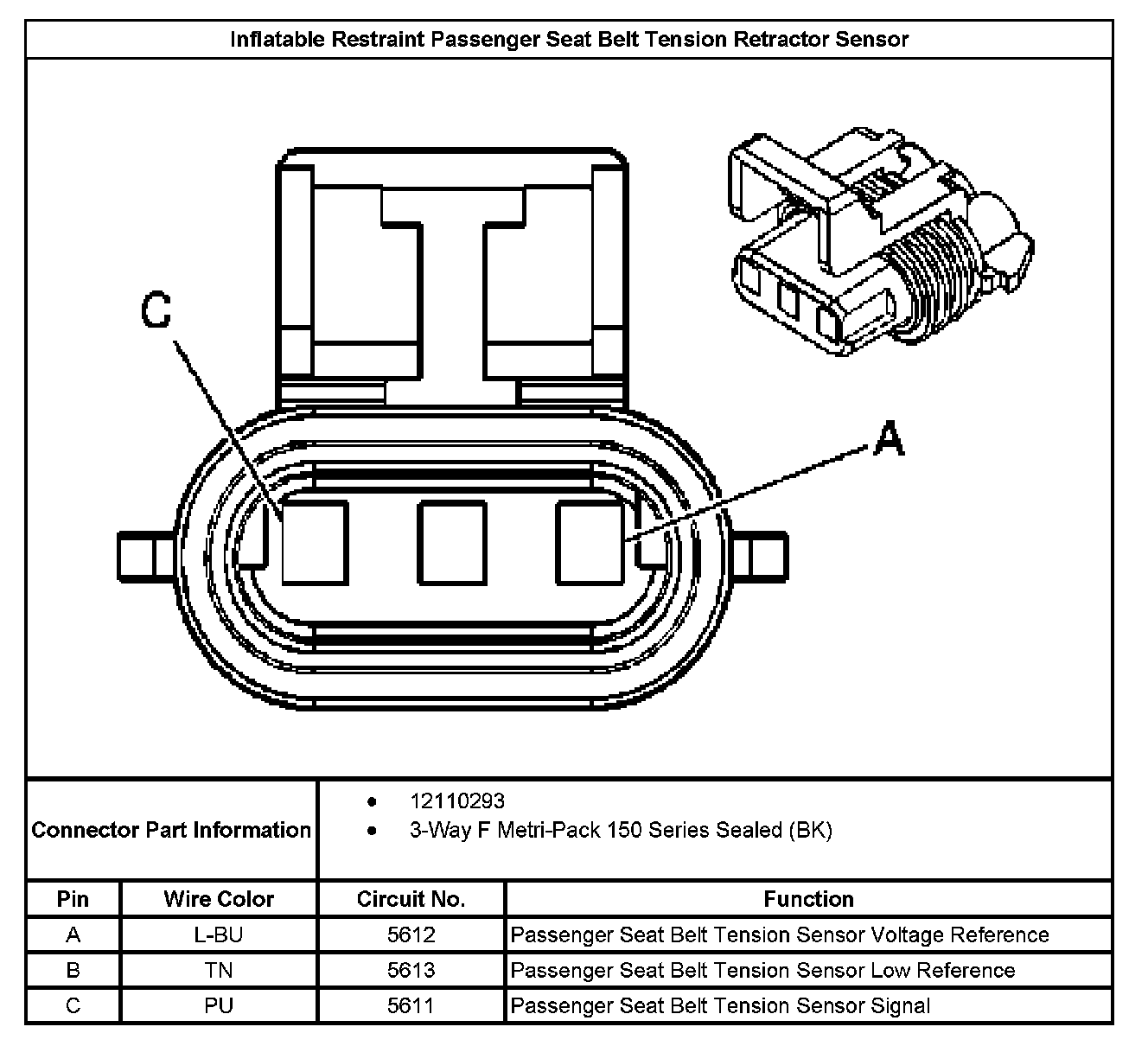

Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor:
