Chevy Truck
>>
2005
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C105
C105

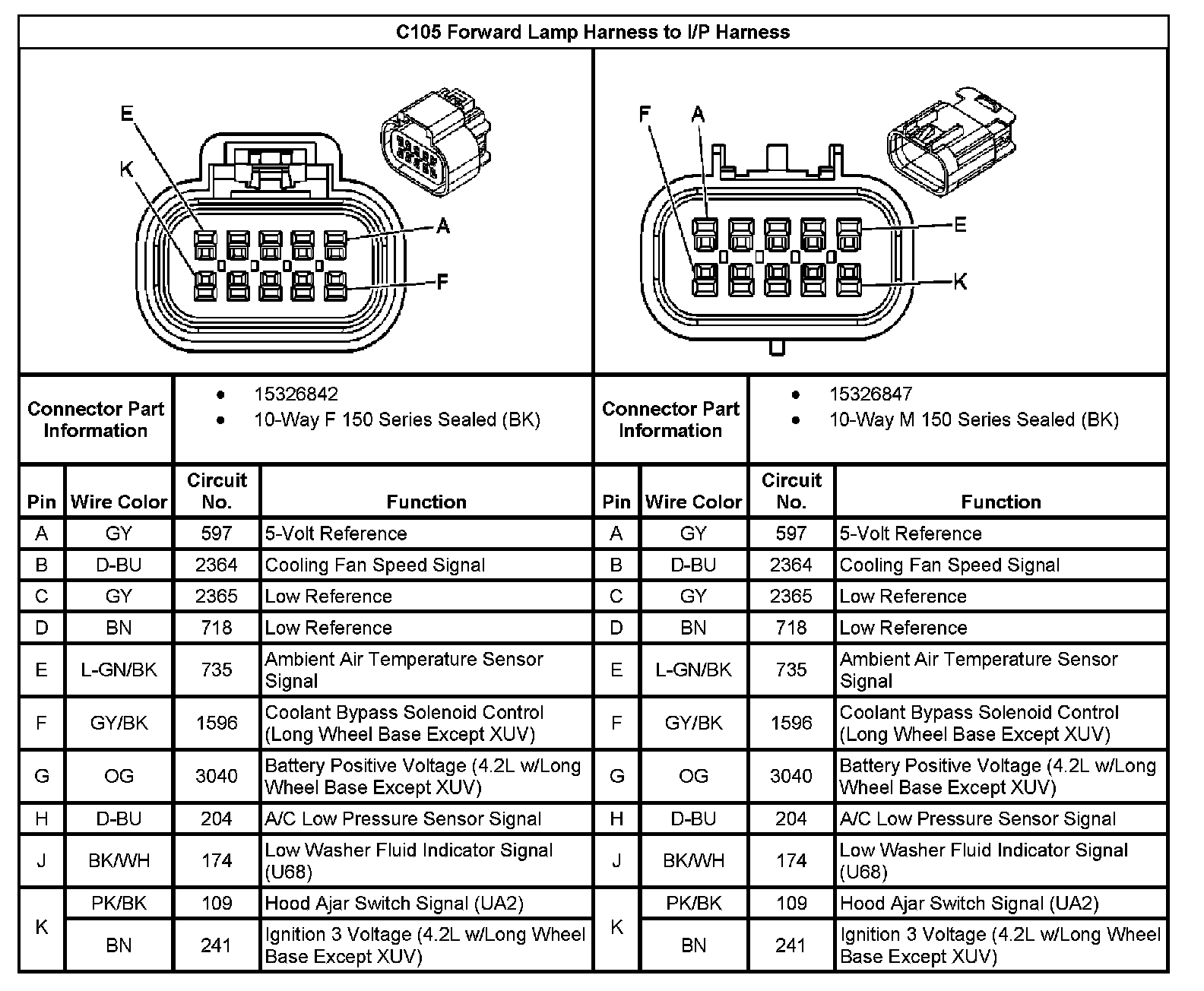

C105 Forward Lamp Harness To I/P Harness:
