Home
>>
Chevy Truck
>>
2005
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C900 - C999
C900 - C999

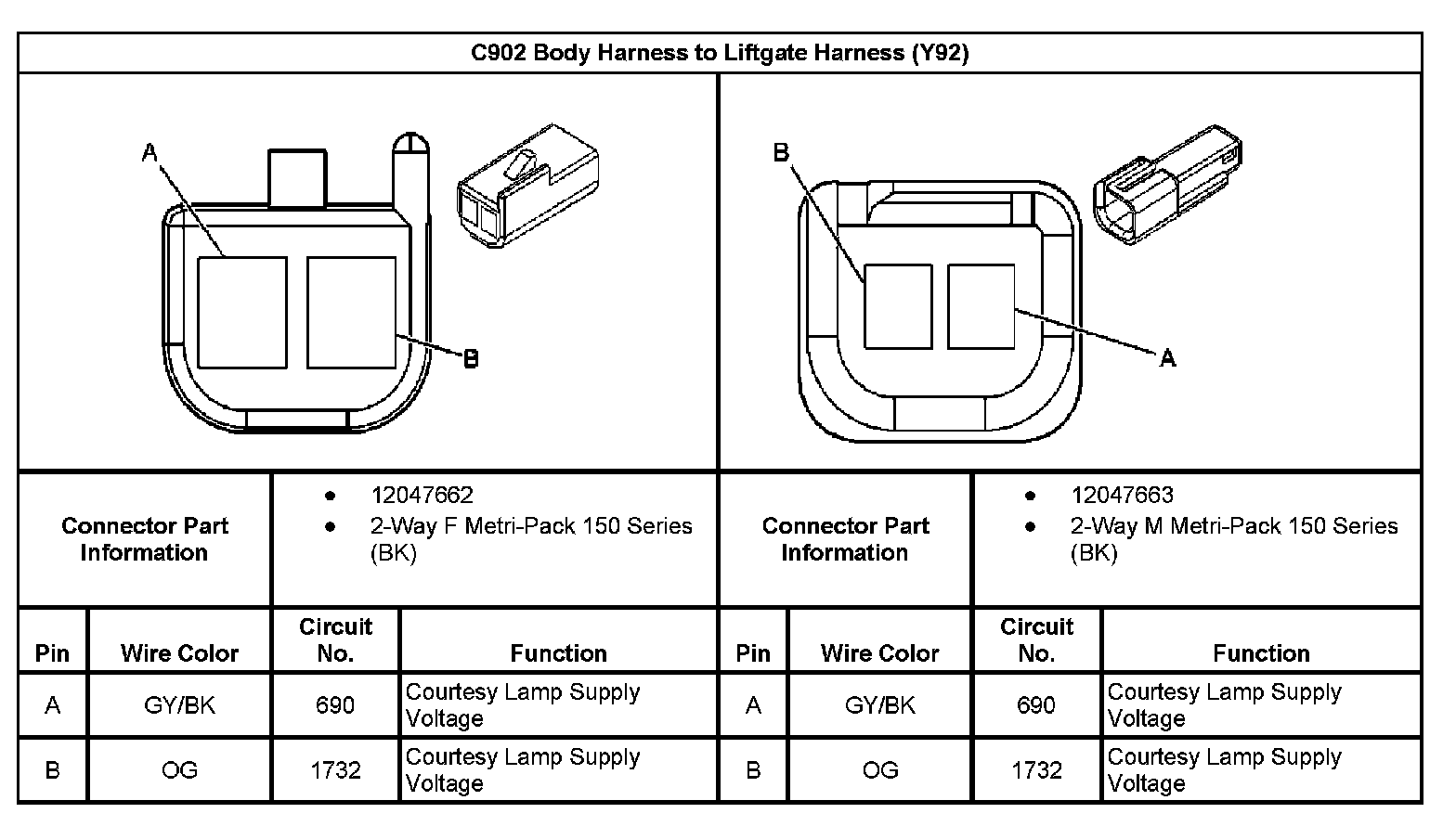

C902 Body Harness To Liftgate Harness (Y92):
