Receiver Replacement - Digital Radio

RECEIVER REPLACEMENT - DIGITAL RADIO

REMOVAL PROCEDURE
1. Lower the right closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.

IMPORTANT: Do NOT swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock(R), and "XM Theftlock(R)" will display.

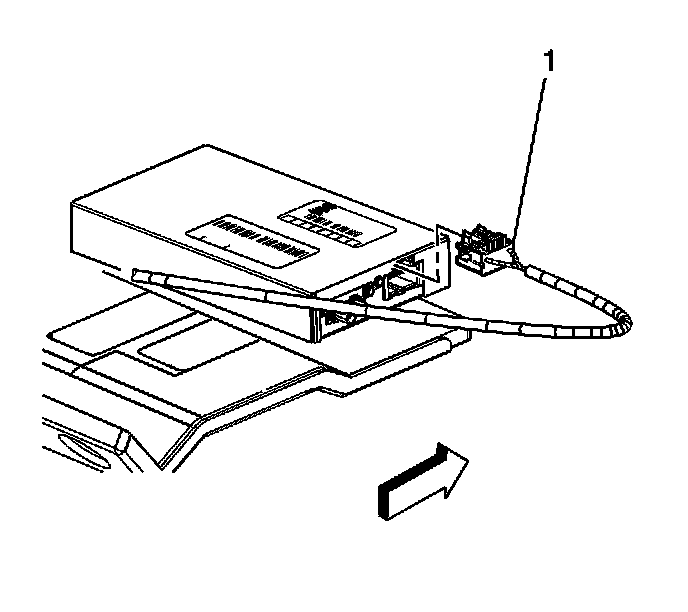

2. Remove the electrical connector (1) from the receiver.

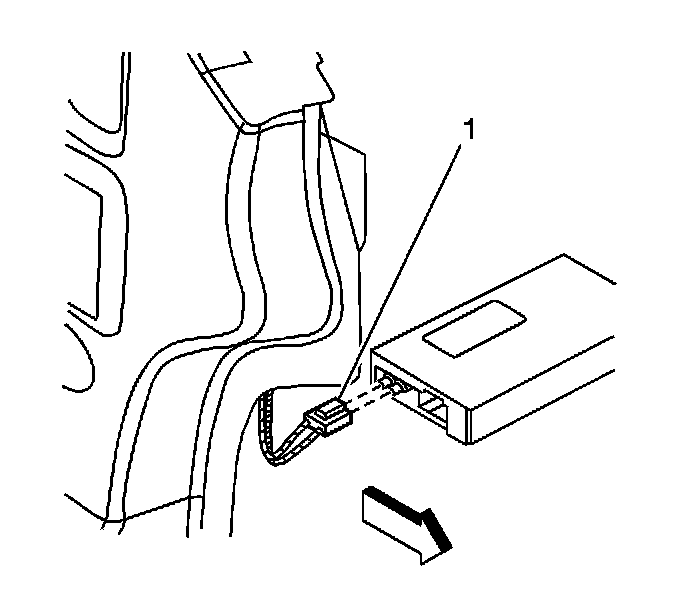

3. Remove the antenna electrical connector (1) from the receiver.

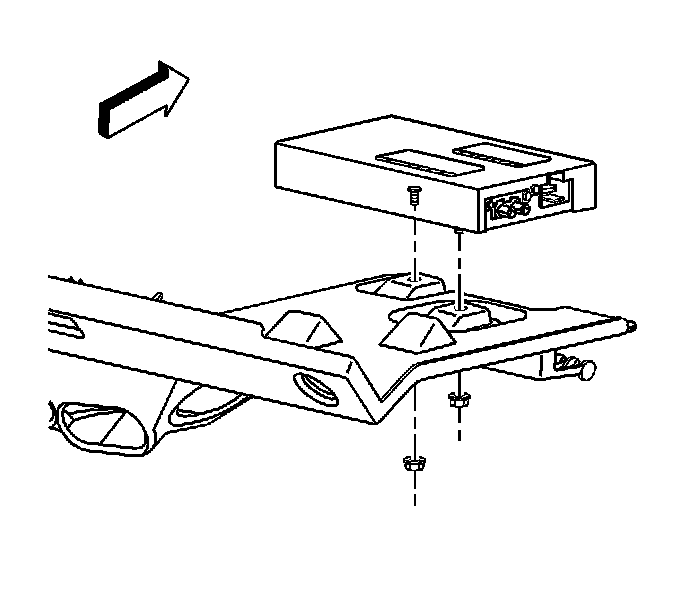

4. Remove the nuts retaining the receiver to the insulator panel.
5. Remove the receiver from the vehicle.

INSTALLATION PROCEDURE




1. Position the receiver near the insulator panel.
2. Install the antenna electrical connector (1) to the receiver.




3. Install the electrical connector (1) to the receiver.




4. Install the receiver to the insulator panel.
5. Install the nuts retaining the receiver to the insulator panel.

Tighten the nuts to 5 N.m (44 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

6. Install the right closeout insulator panel.
7. Perform the setup procedure for the digital radio receiver. Refer to Digital Radio Receiver Setup.
