Chevy Truck
>>
2005
>>
Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft Assembly
Axle Shaft Assembly
Wheel Drive Shafts Disassembled Views

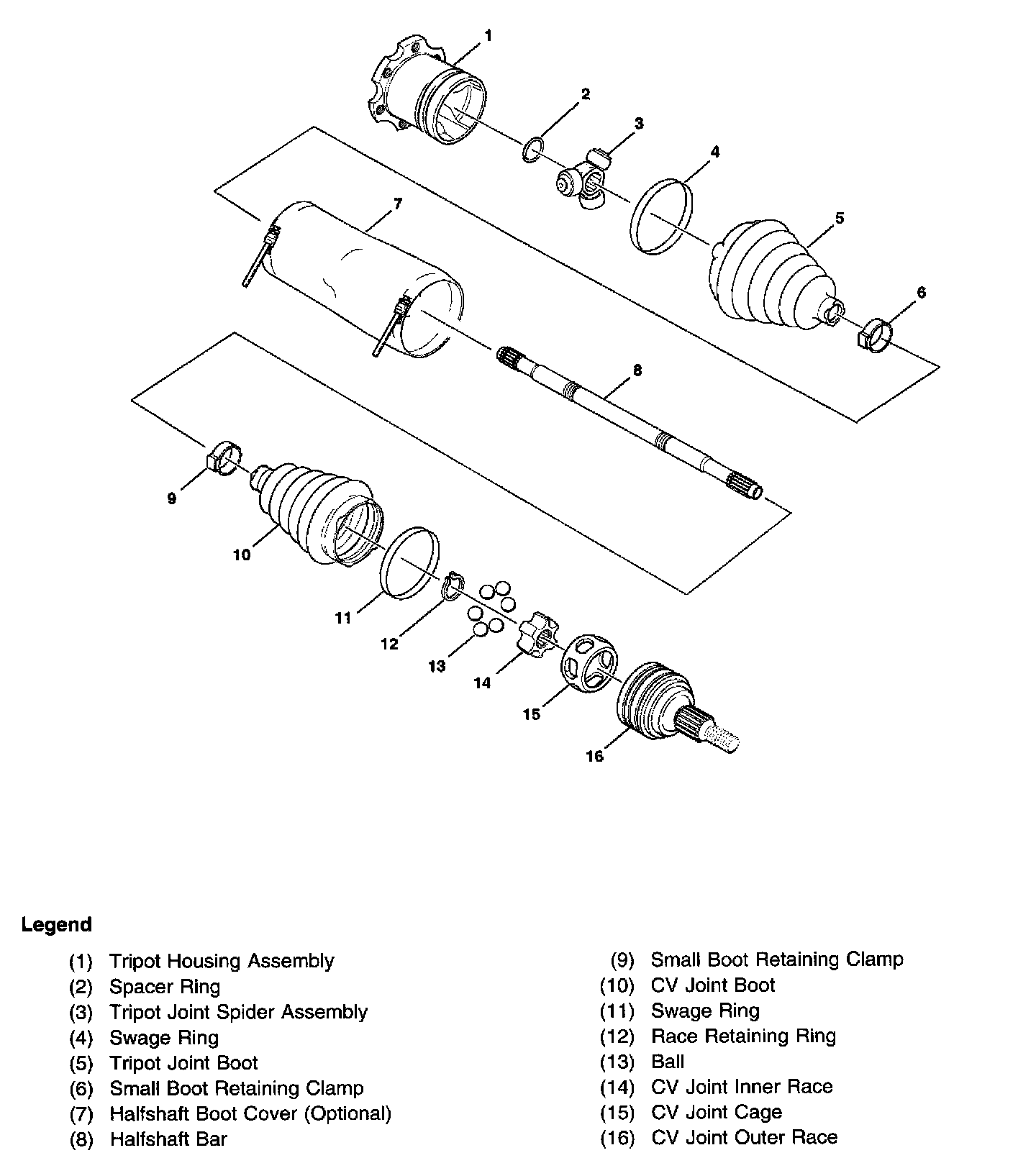

Halfshaft Components, Disassembled View
