Junction Block - Rear Lamps - C2
Junction Block - Rear Lamps - C2

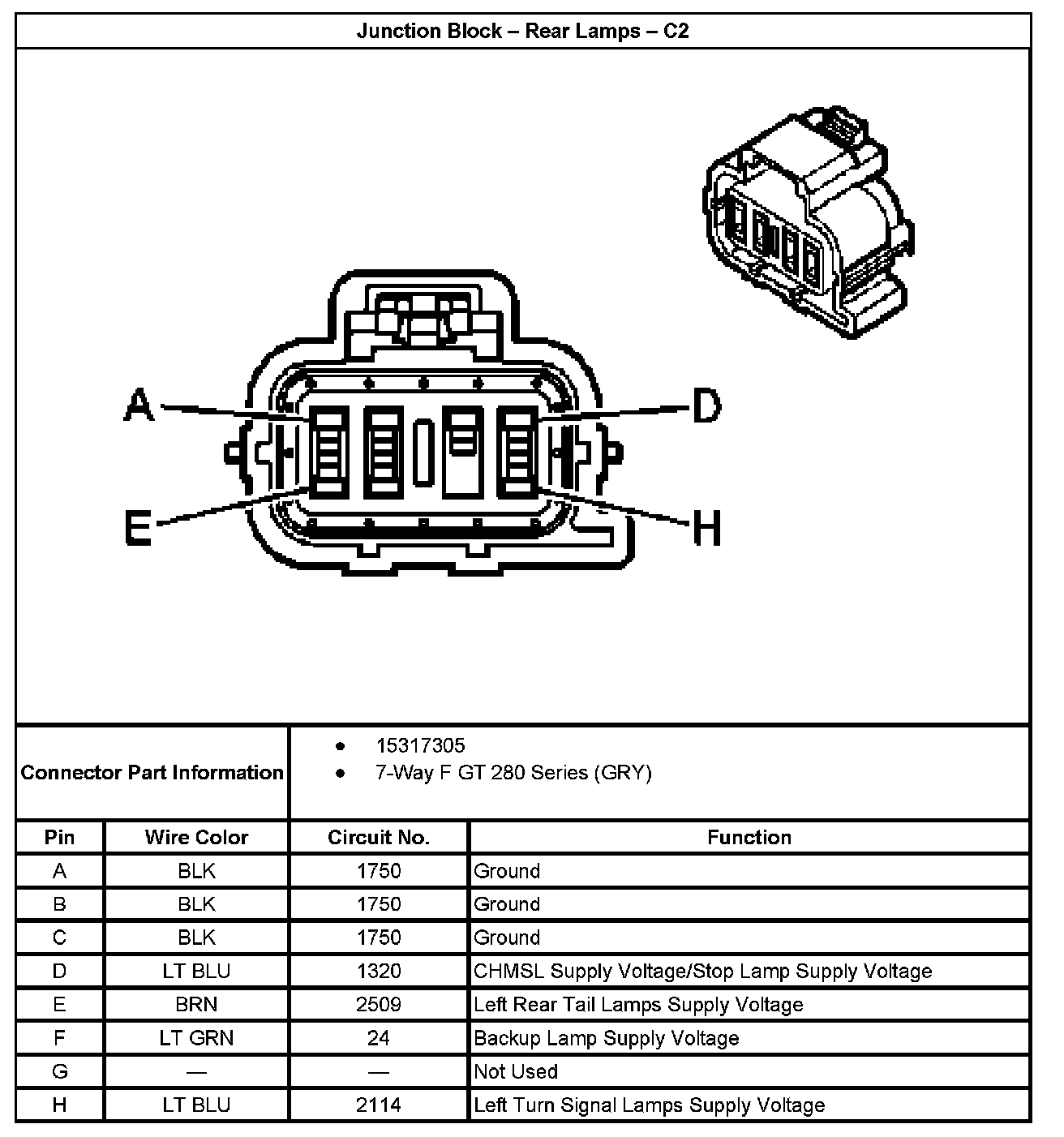

Junction Block - Rear Lamps - C2:

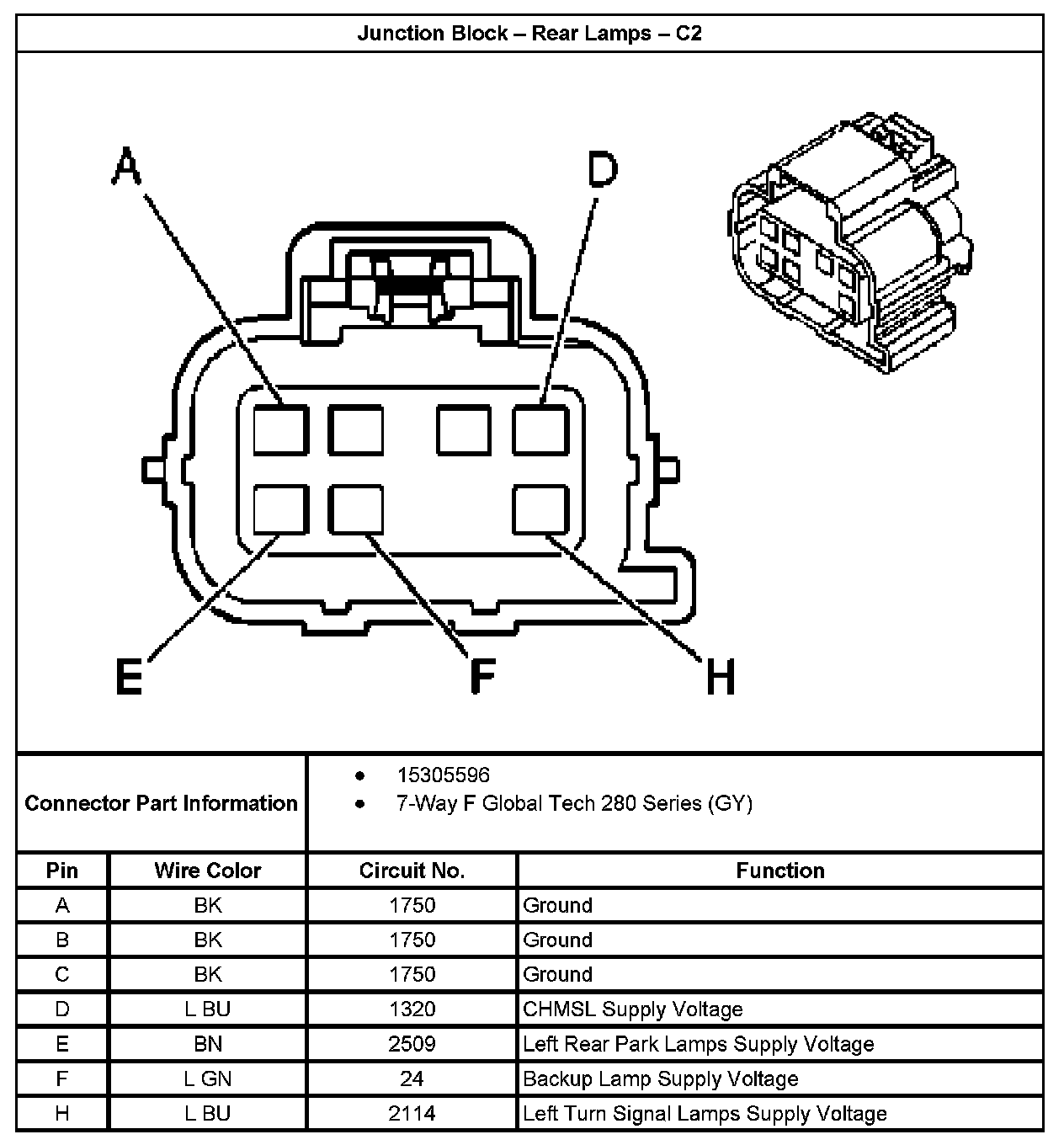

Junction Block - Rear Lamps - C2:
