Chevy Truck
>>
2005
>>
Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Relay Block - I/P - 10
Relay Block - I/P - 10

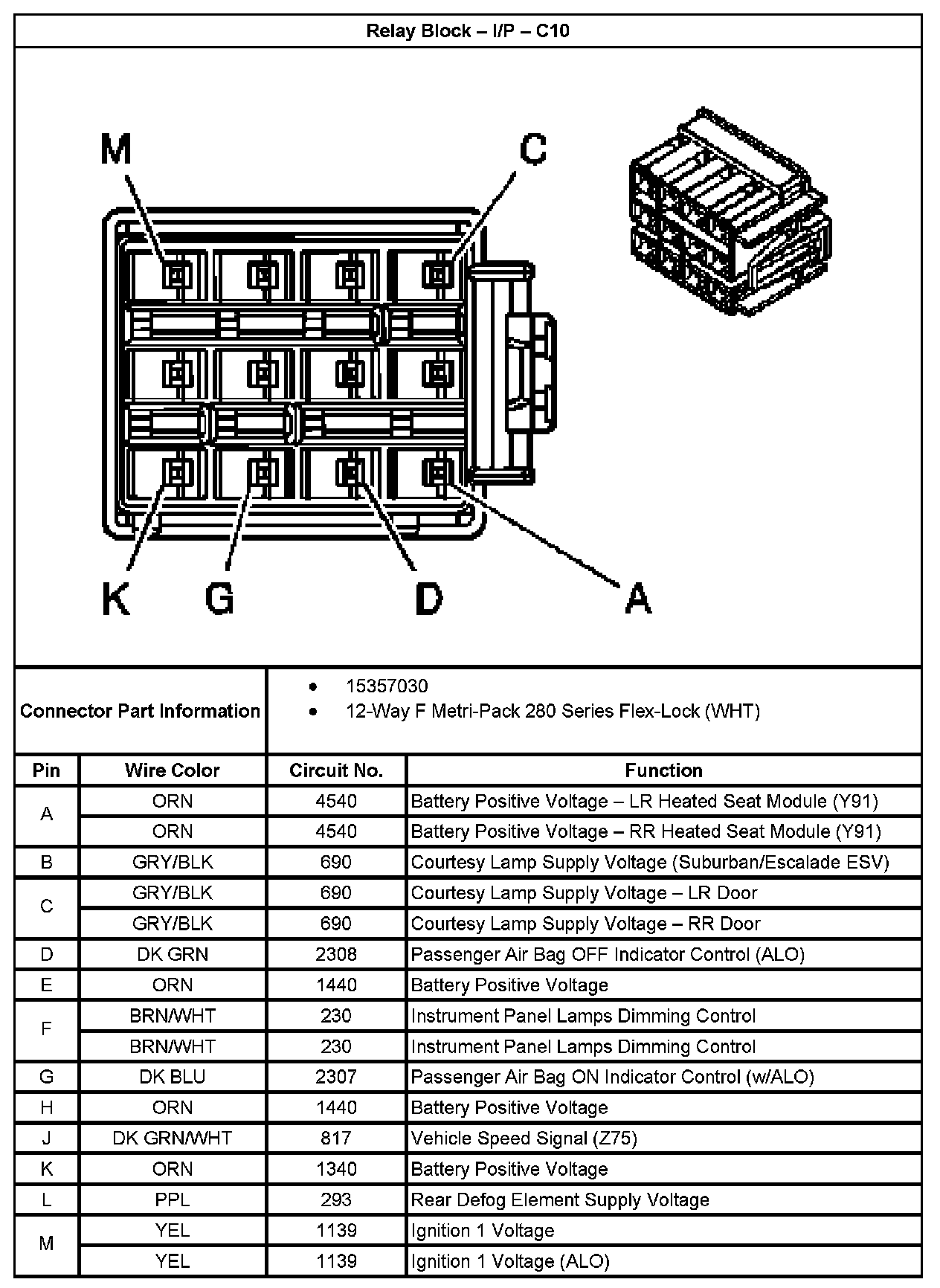

Relay Block - I/P - C10:
