Power Seat Motor Position Sensor
>>
Seat Lumbar Motor/Position Sensor
Seat Lumbar Motor/Position Sensor

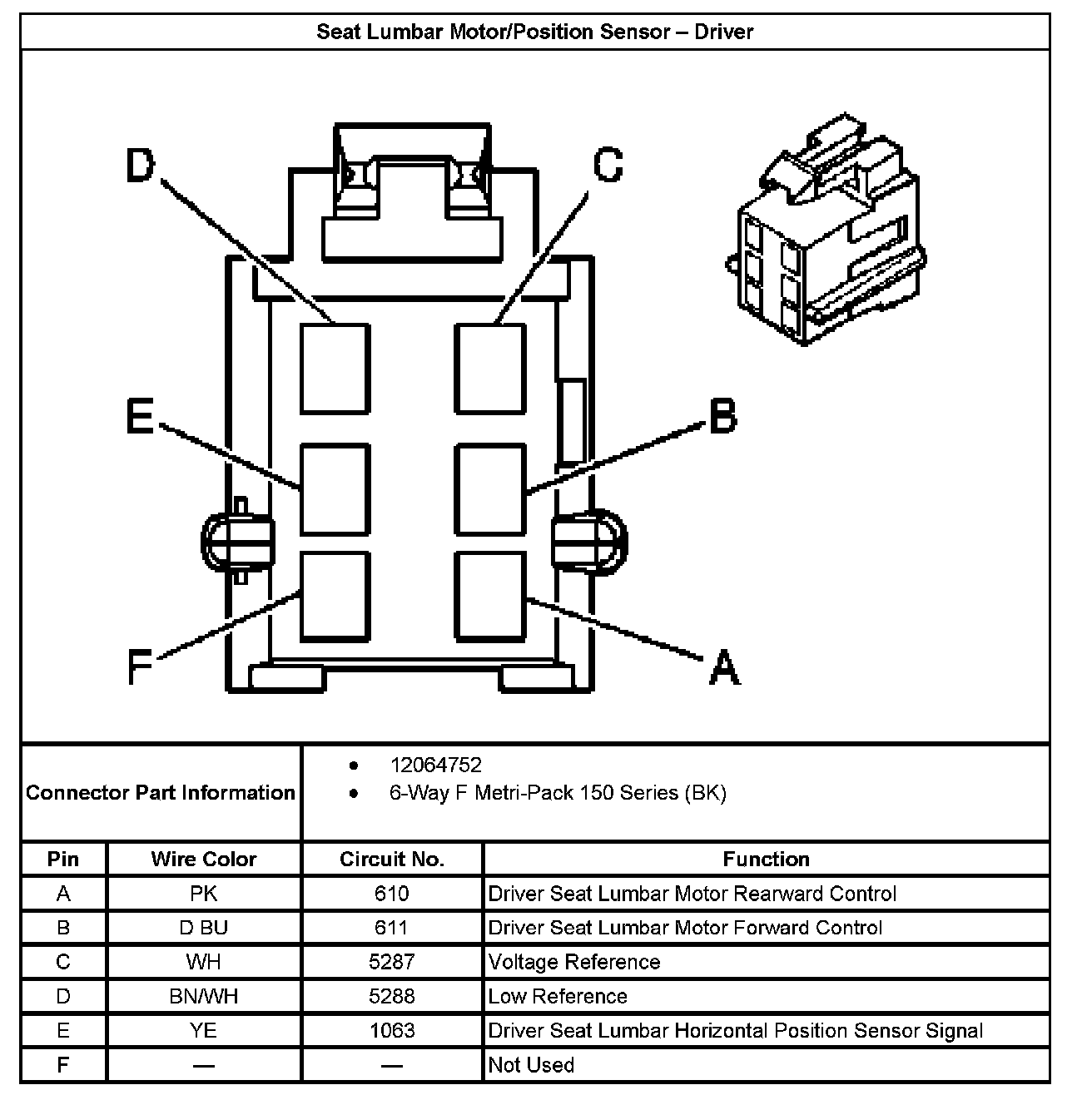

Seat Lumbar Motor/Position Sensor - Driver:
