Chevy Truck
>>
2005
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C277
C277

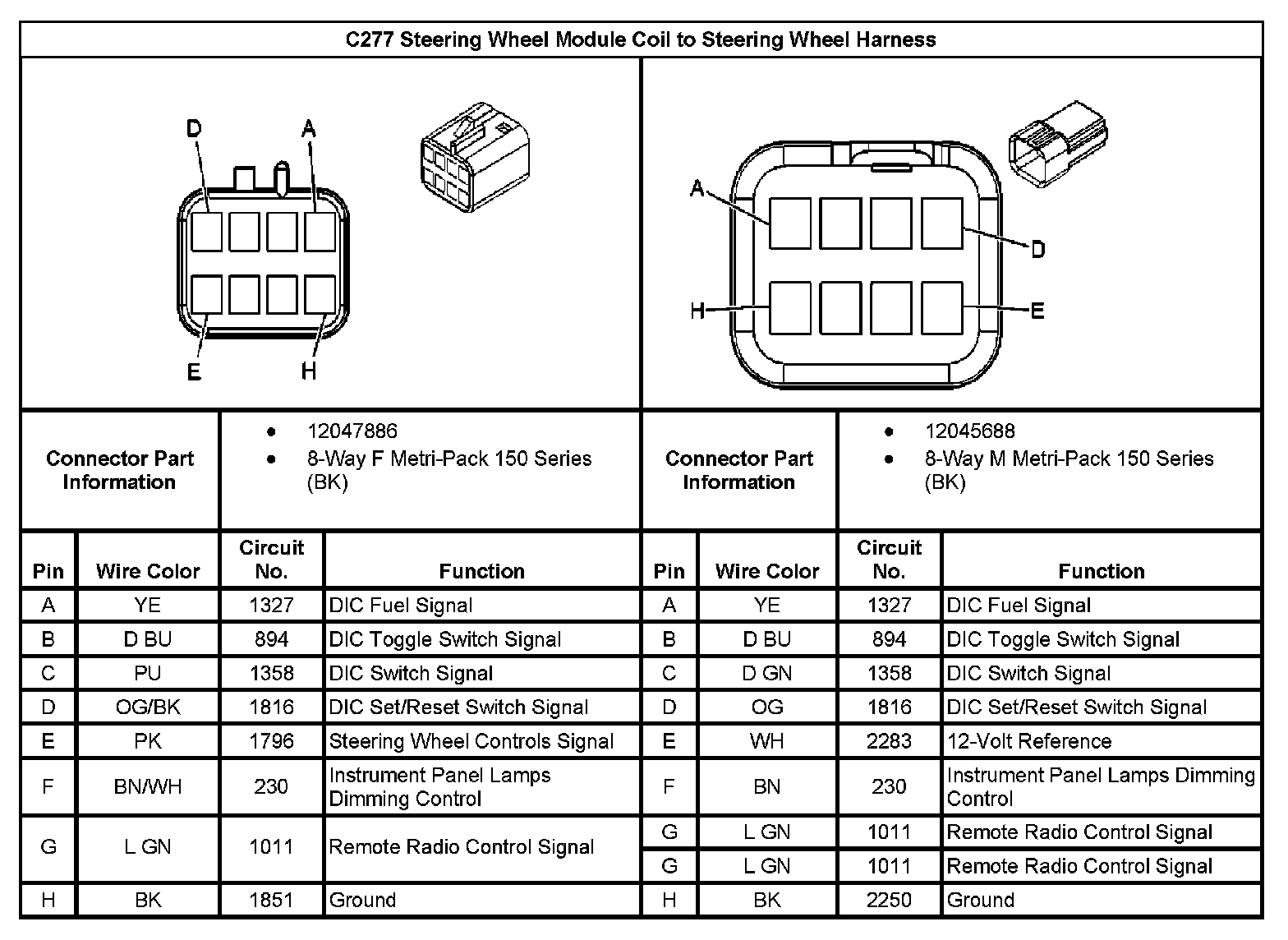

C277 Steering Wheel Module Coil To Steering Wheel Harness:
