Junction Block - Rear Lamps - C1

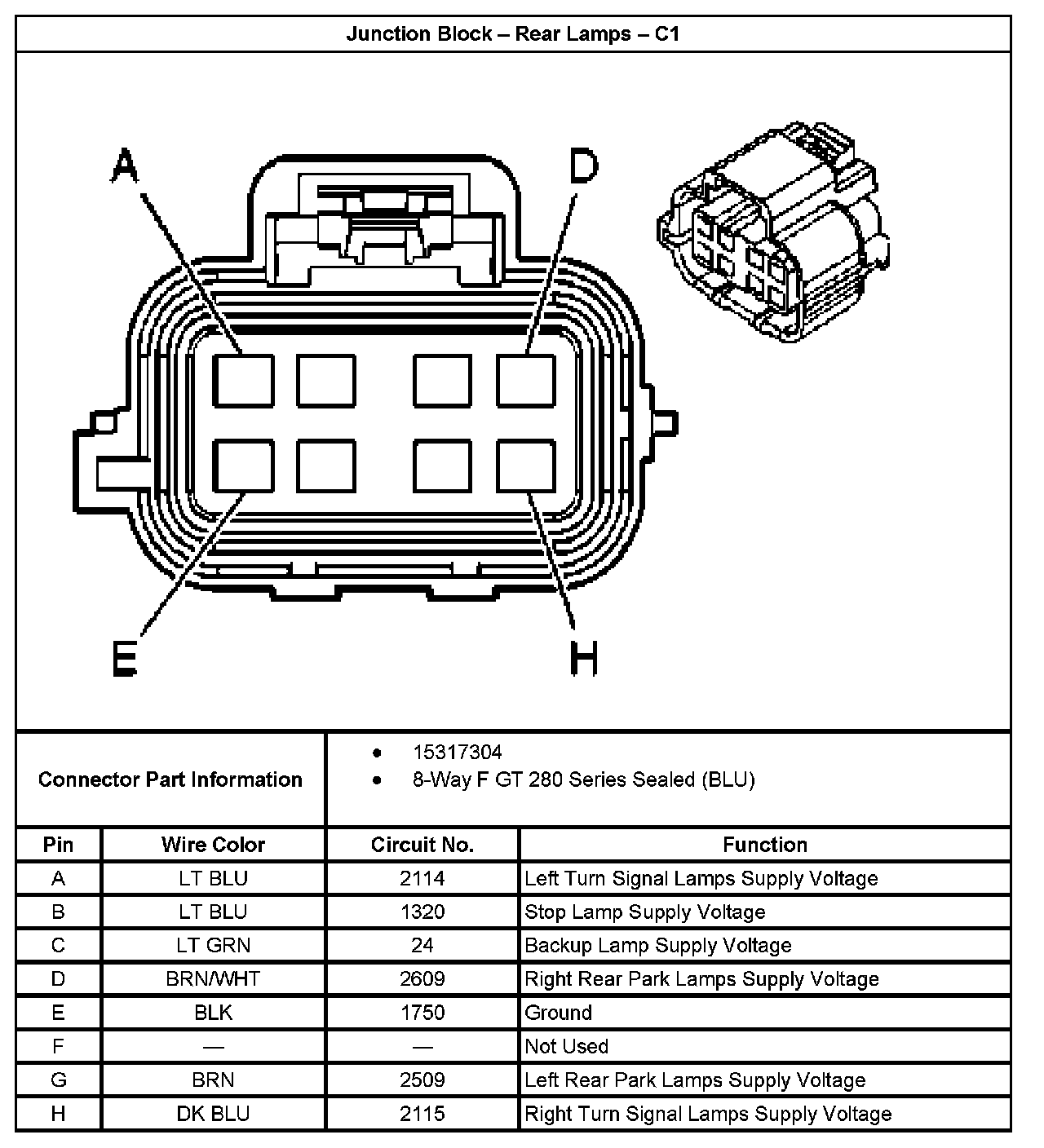

Junction Block - Rear Lamps - C1:

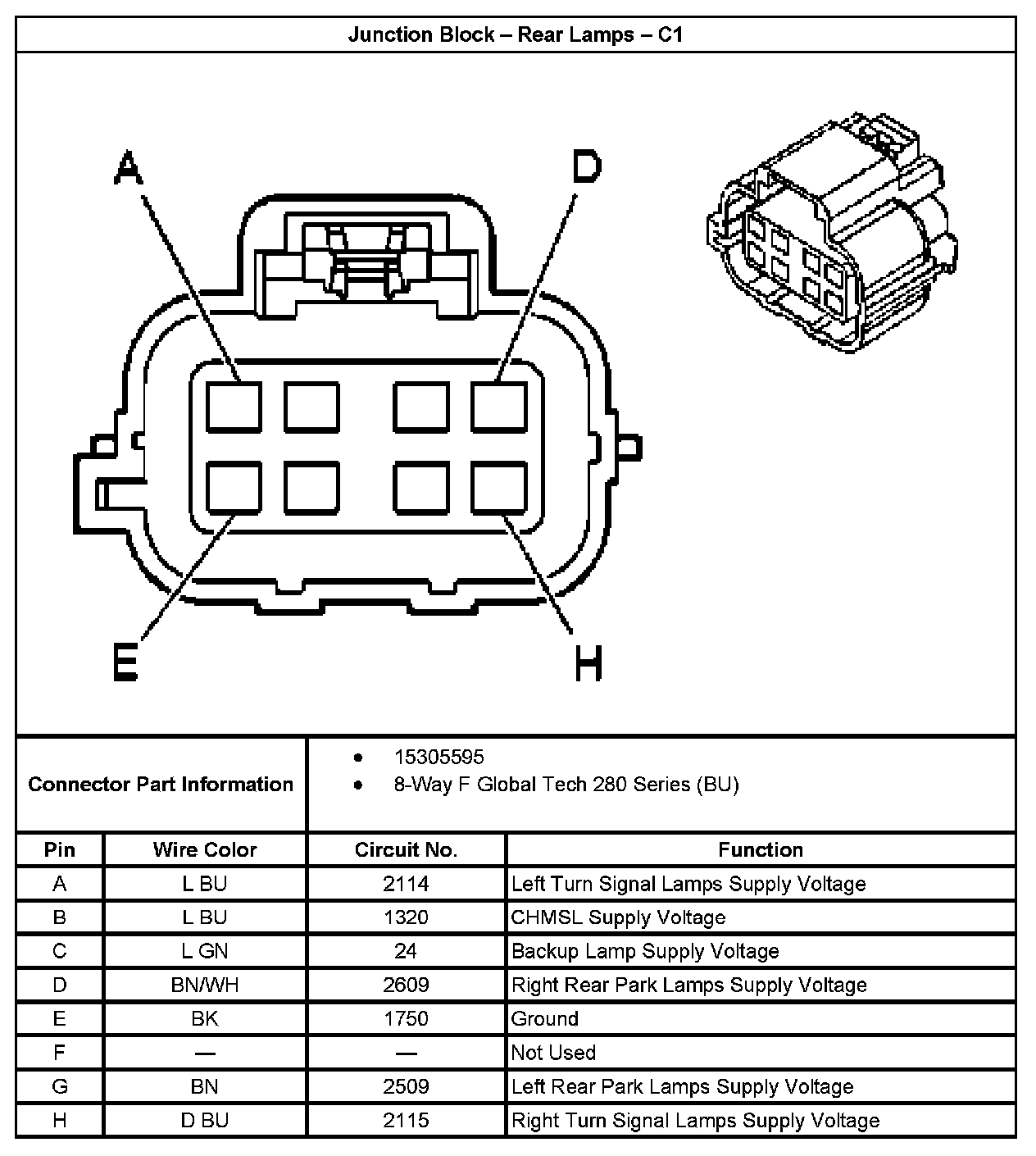

Junction Block - Rear Lamps - C1:
