Chevy Truck
>>
2005
>>
Silverado 3500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

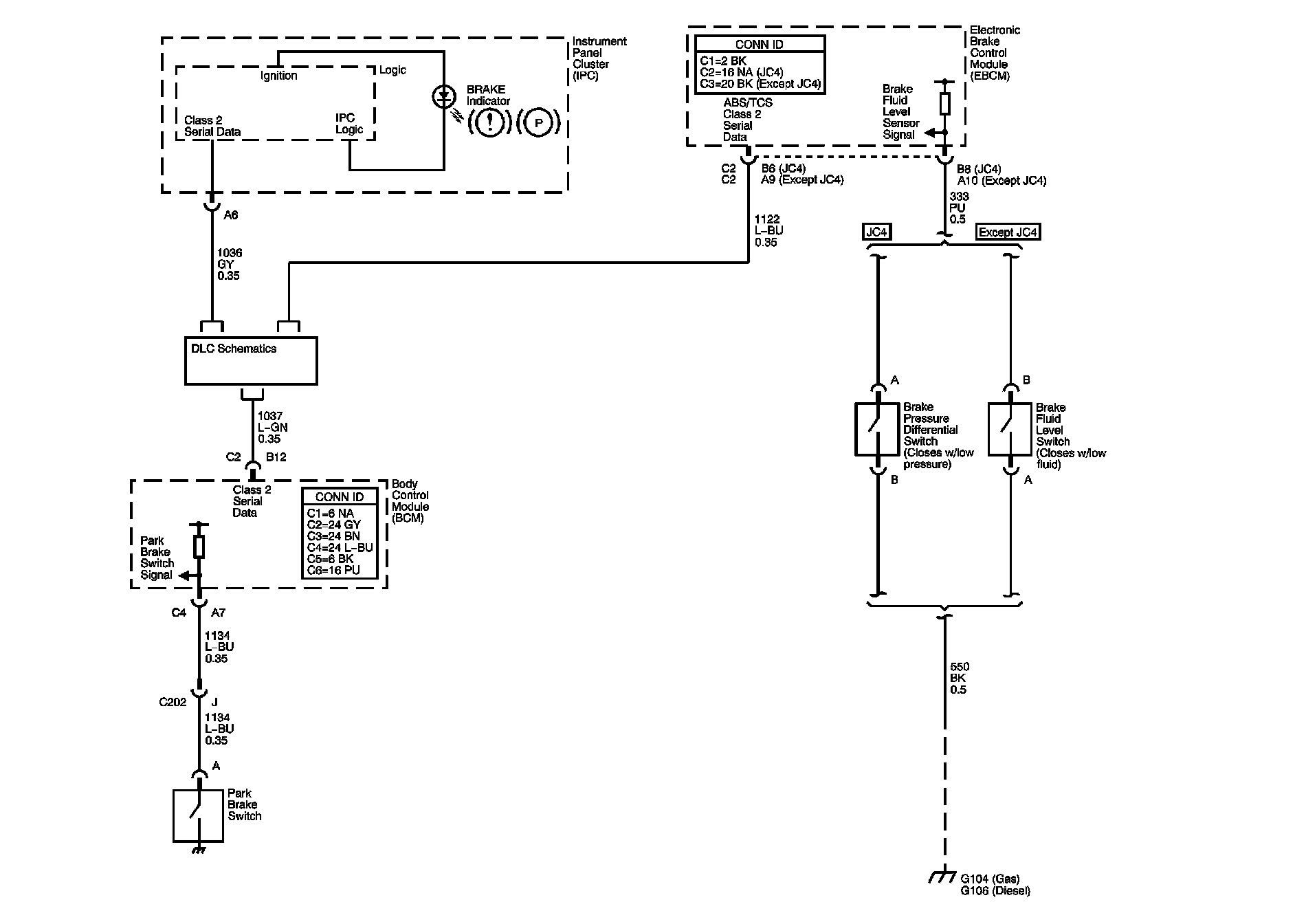

Brake Warning Indicator
>>
Power, Ground, Serial Data, Indicator Control and Switches
Power, Ground, Serial Data, Indicator Control and Switches
