Chevy Truck
>>
2005
>>
Silverado 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Torque Converter Clutch Solenoid, A/T
>>
Allison
Allison

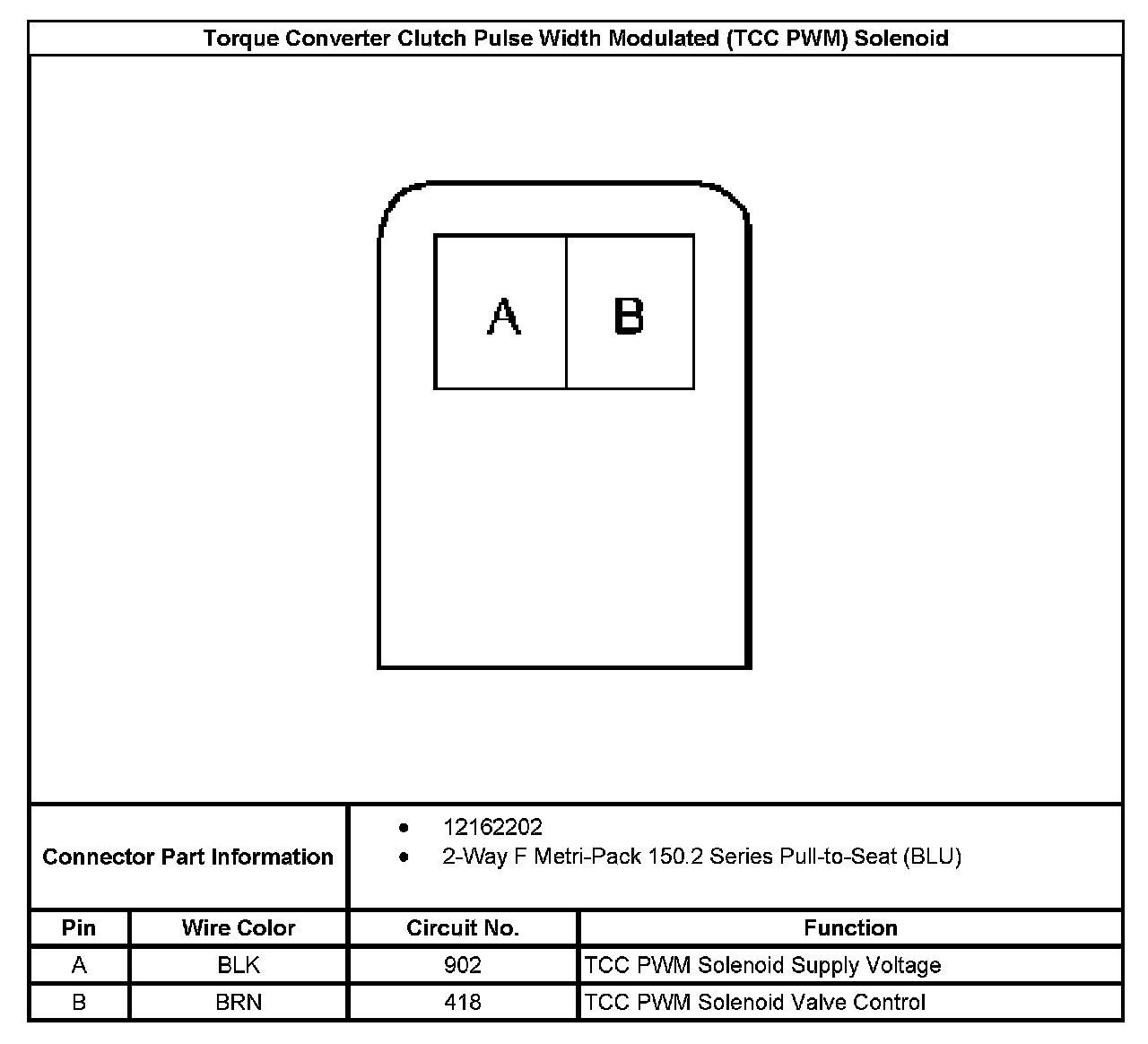

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid:
