Home >> Chevy Truck >> 2005 >> Silverado 2500 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Solenoid, A/T >> Allison

Allison

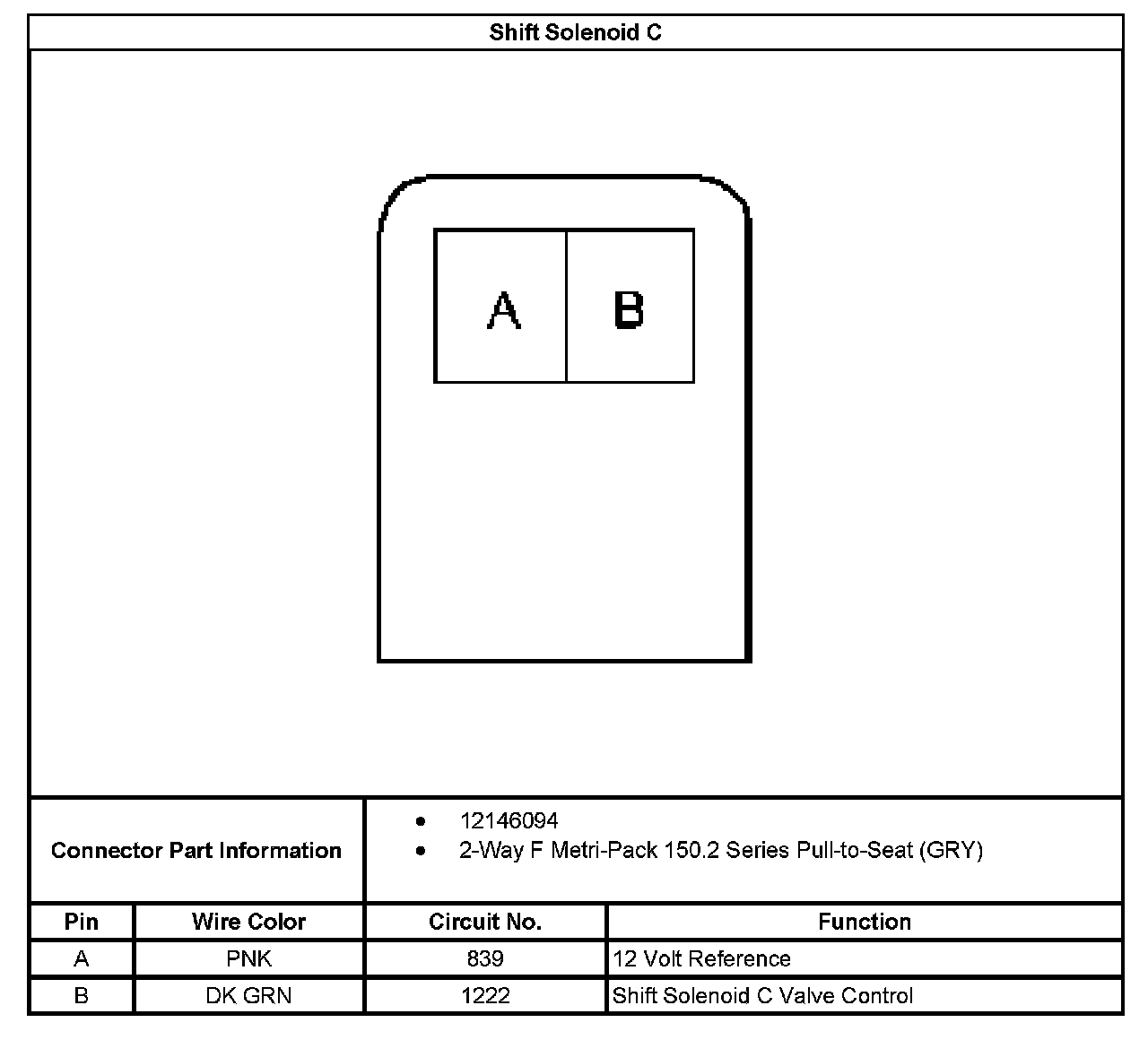

Shift Solenoid C:

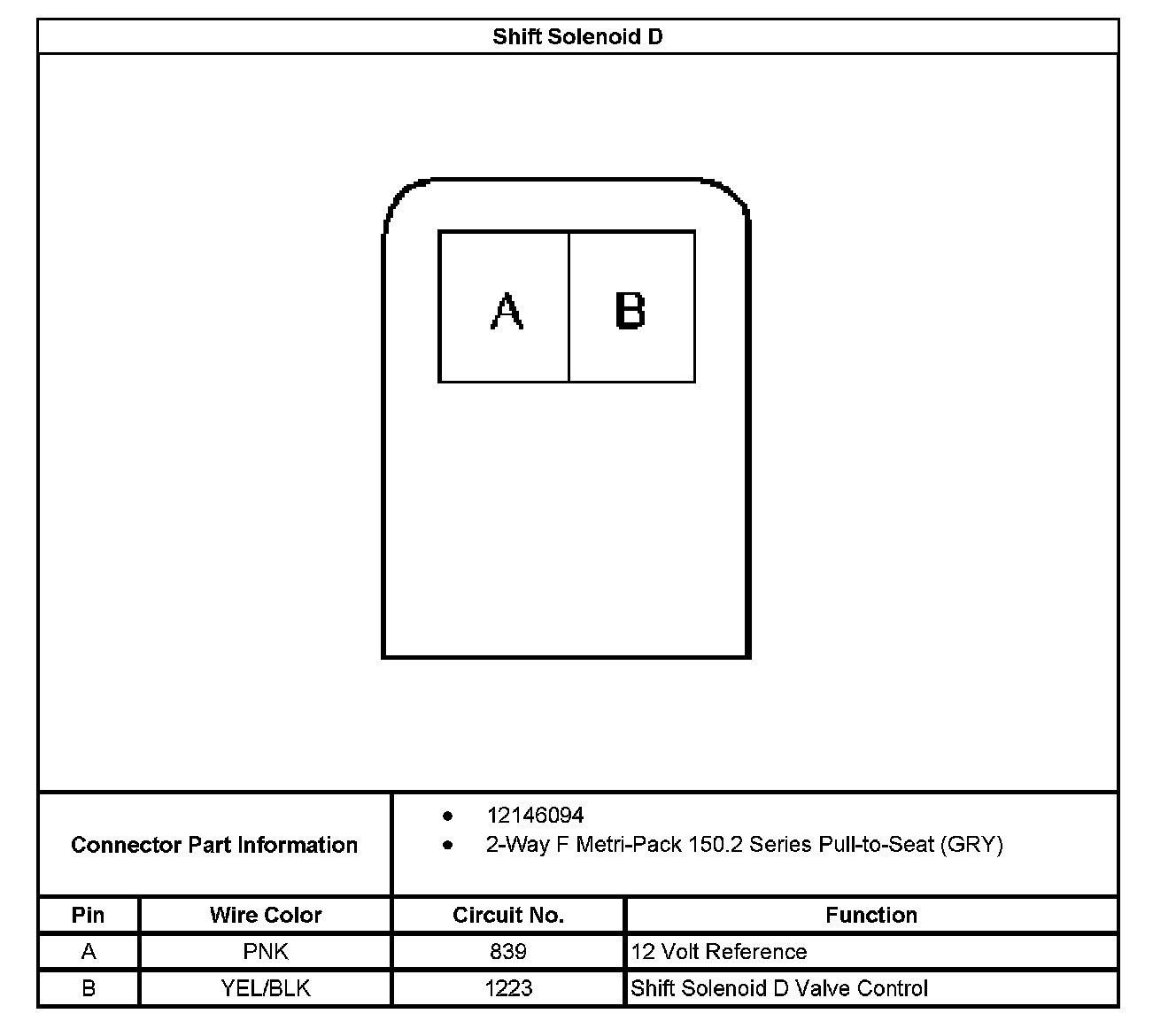

Shift Solenoid D:

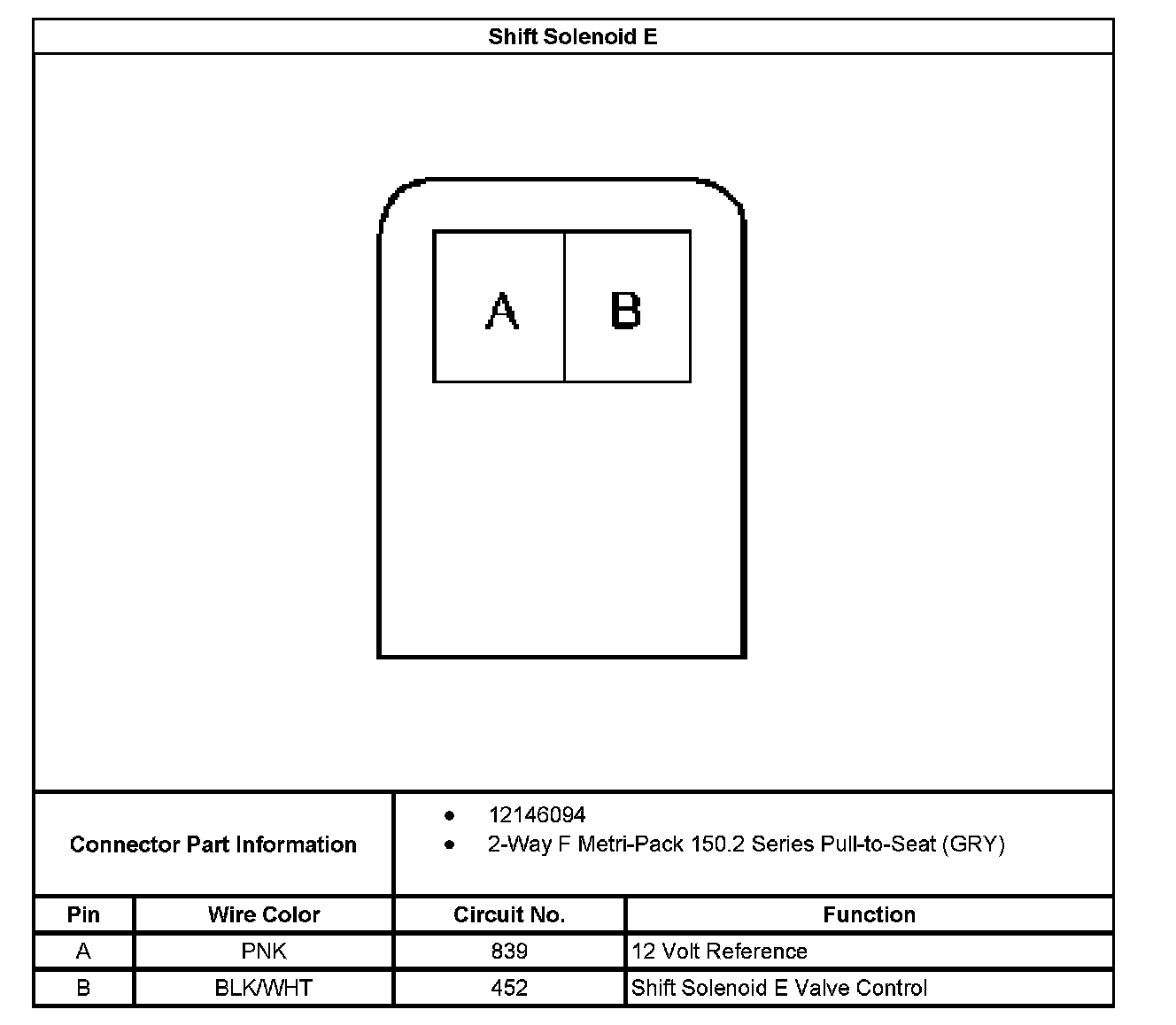

Shift Solenoid E:

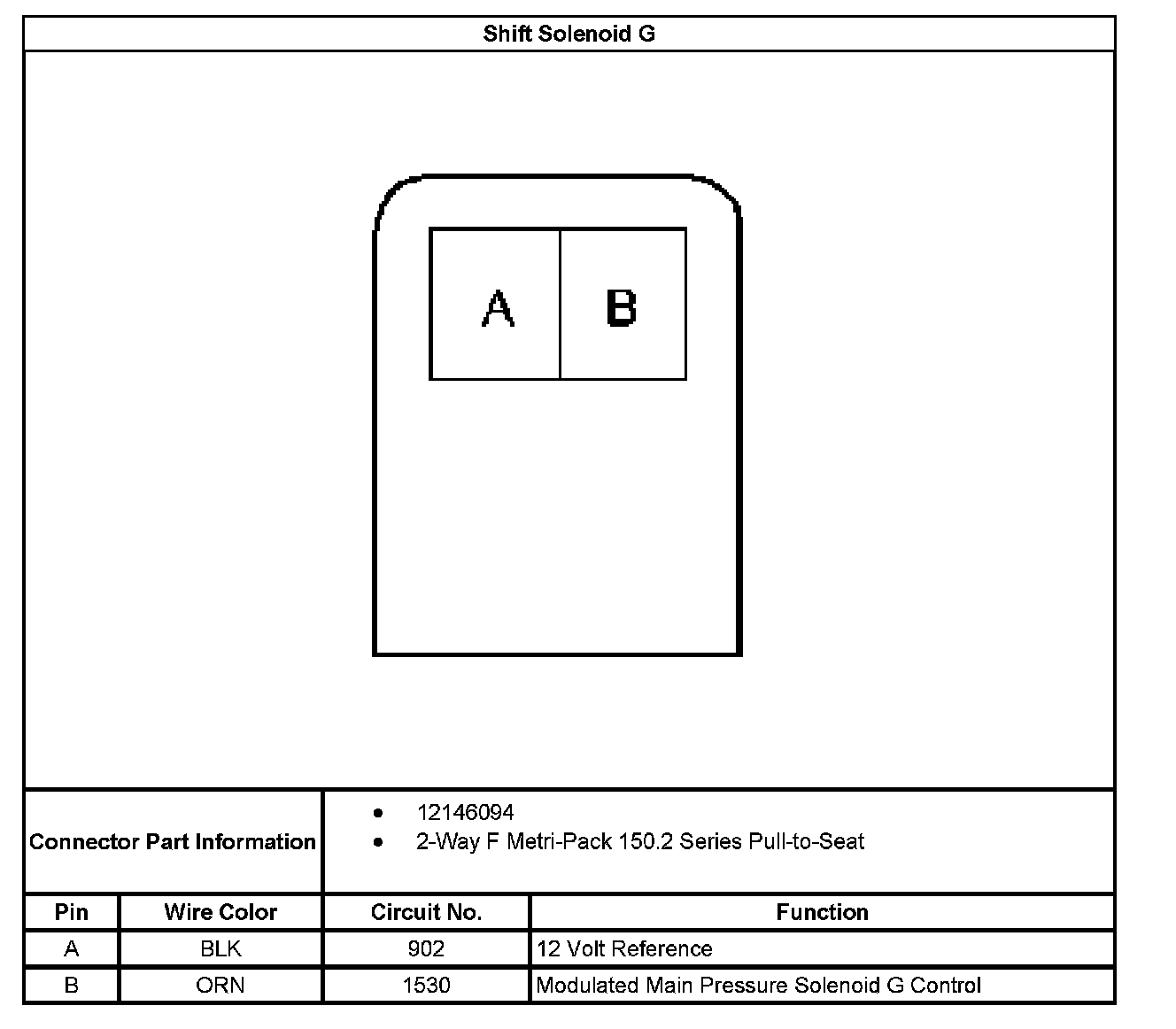

Shift Solenoid G:
