Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2005
>>
Silverado 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Pressure Regulating Solenoid, A/T
>>
Allison
Allison

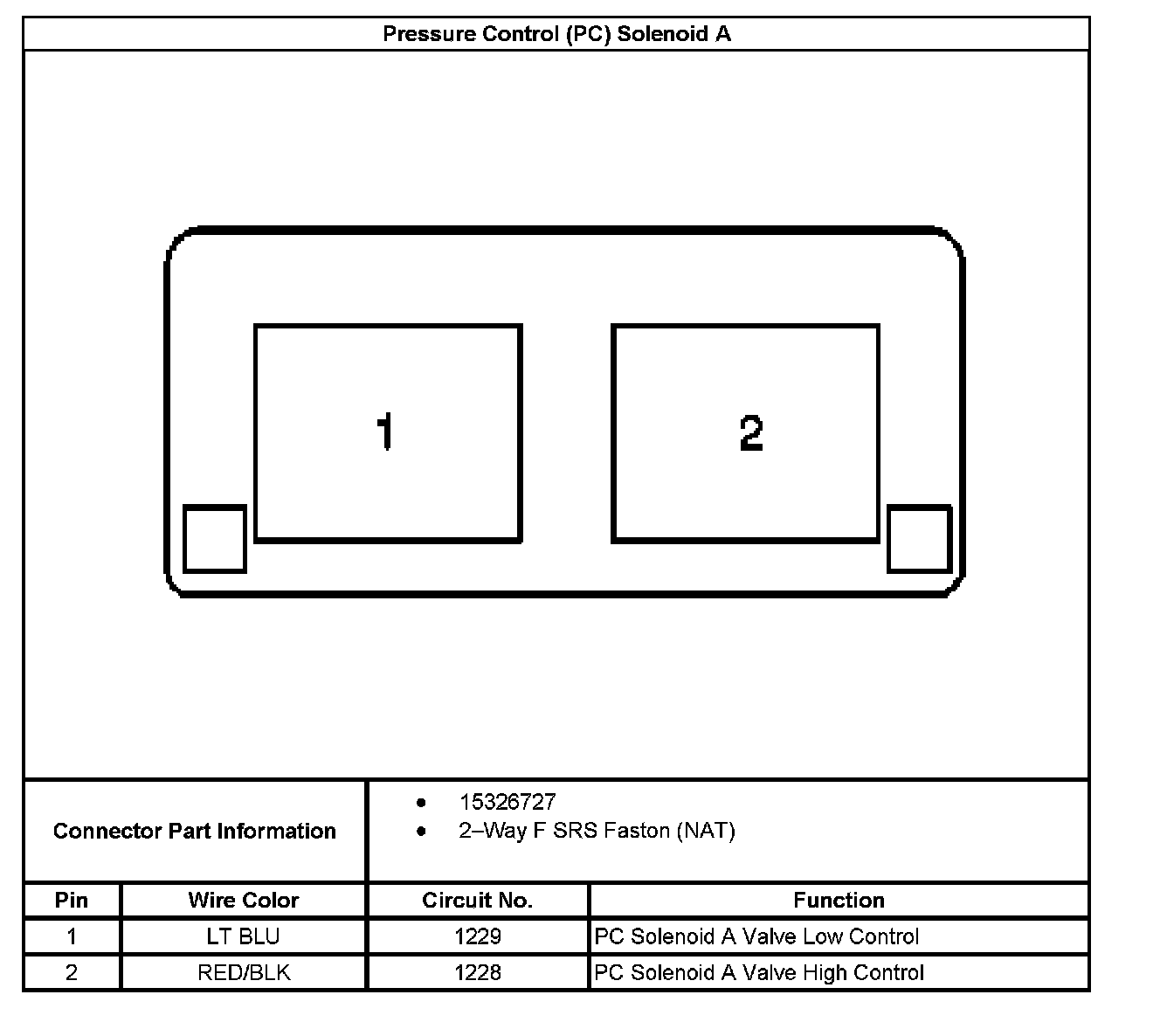

Pressure Control (PC) Solenoid A:

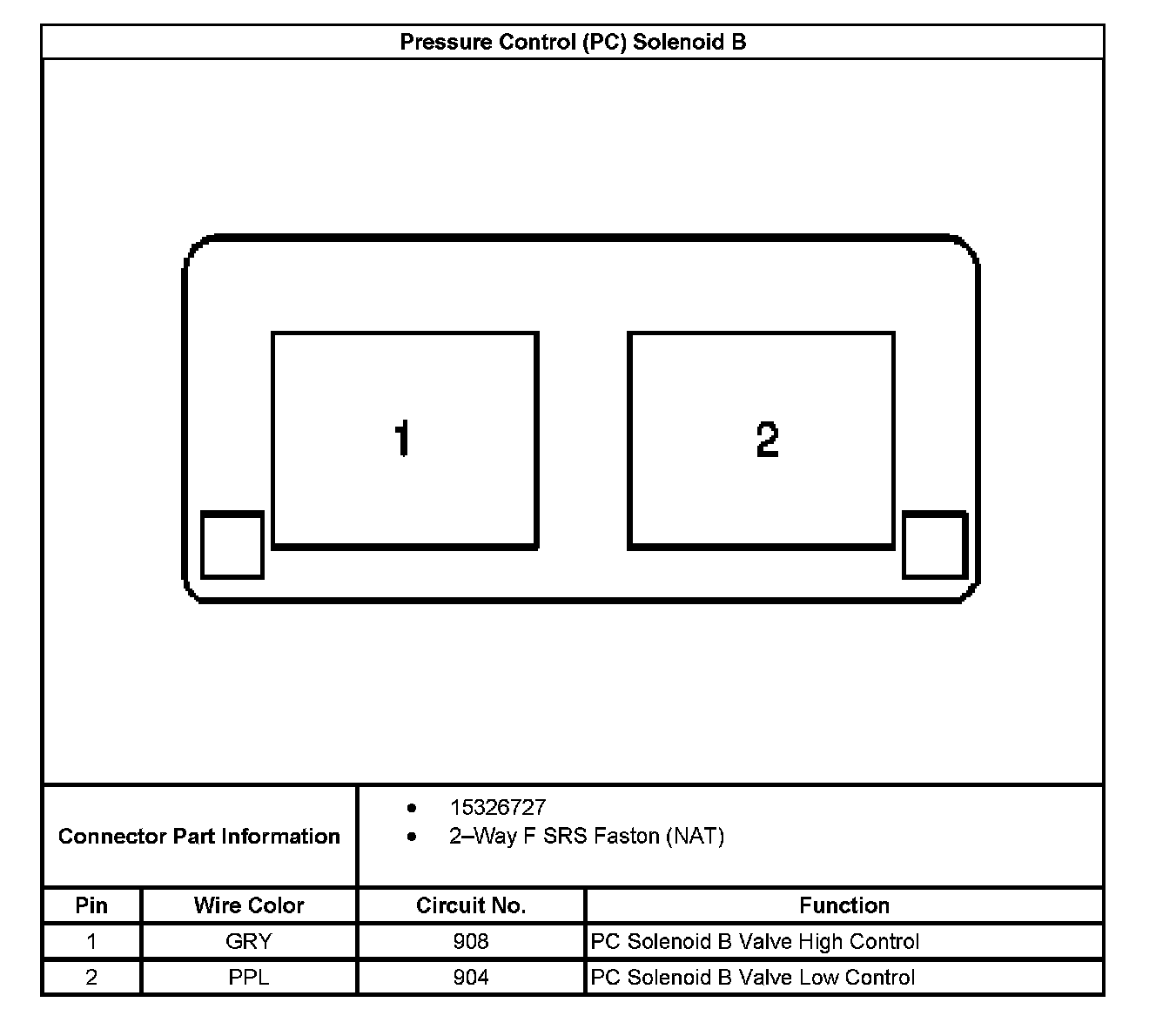

Pressure Control (PC) Solenoid B:
