Chevy Truck
>>
2005
>>
Silverado 2500 2WD V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
>>
Generator Battery Control Module - 10 Series
Generator Battery Control Module - 10 Series

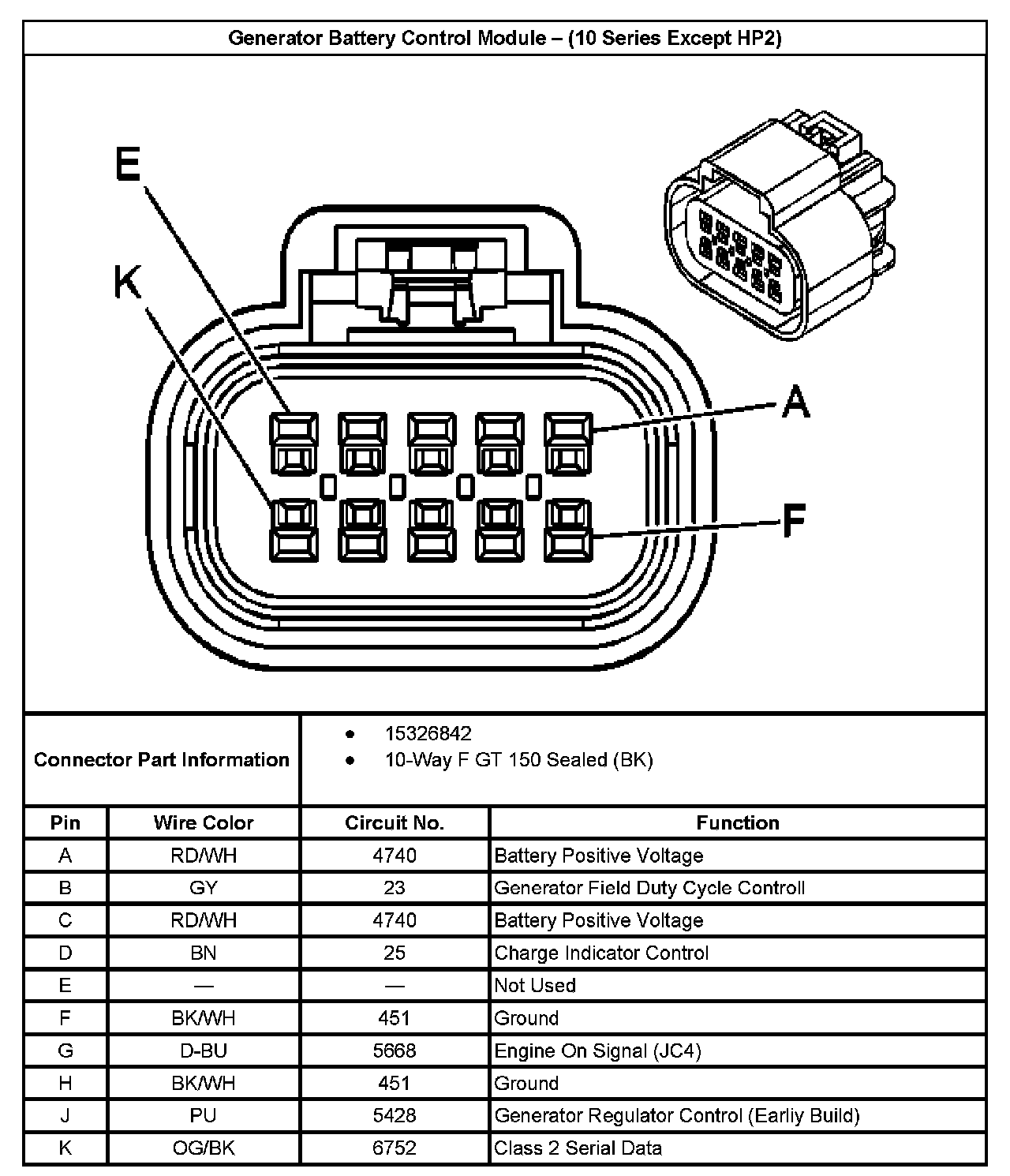

Generator Battery Control Module:
