Chevy Truck
>>
2005
>>
Silverado 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Exterior Lighting Module
>>
Exterior Lighting Relay
>>
Diagrams
>>

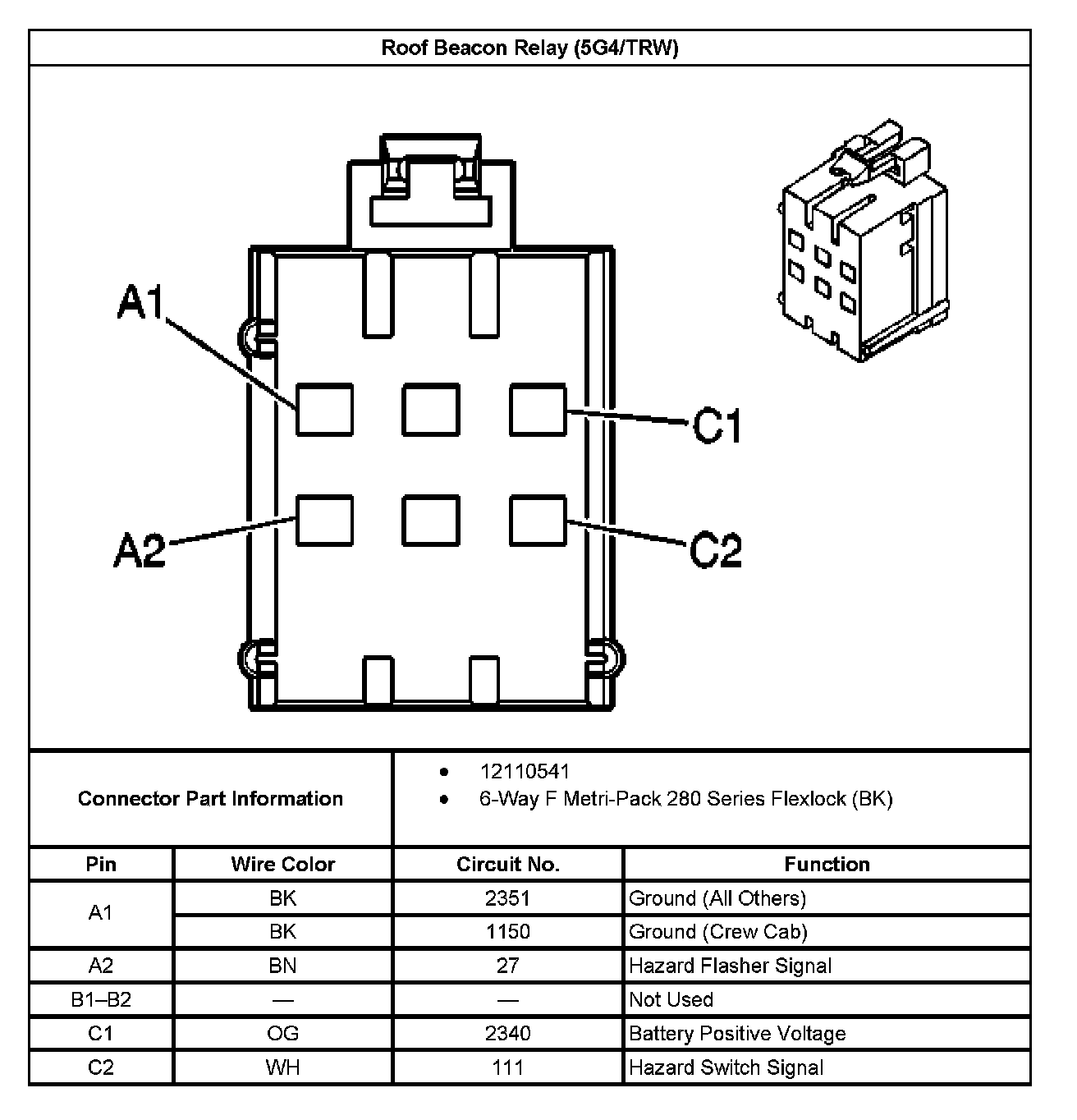

Roof Beacon Relay (With RPO Code 5G4/TRW)
Roof Beacon Relay (With RPO Code 5G4/TRW)
Roof Beacon Relay (With RPO Code 5G4/TRW):
