Exhaust Heat Shield Replacement

Exhaust Heat Shield Replacement

Removal Procedure






1. Remove the exhaust muffler. Refer to Muffler Replacement, Service and Repair
2. Remove the spare tire hoist. Refer to Spare Wheel Hoist Replacement, Service and Repair

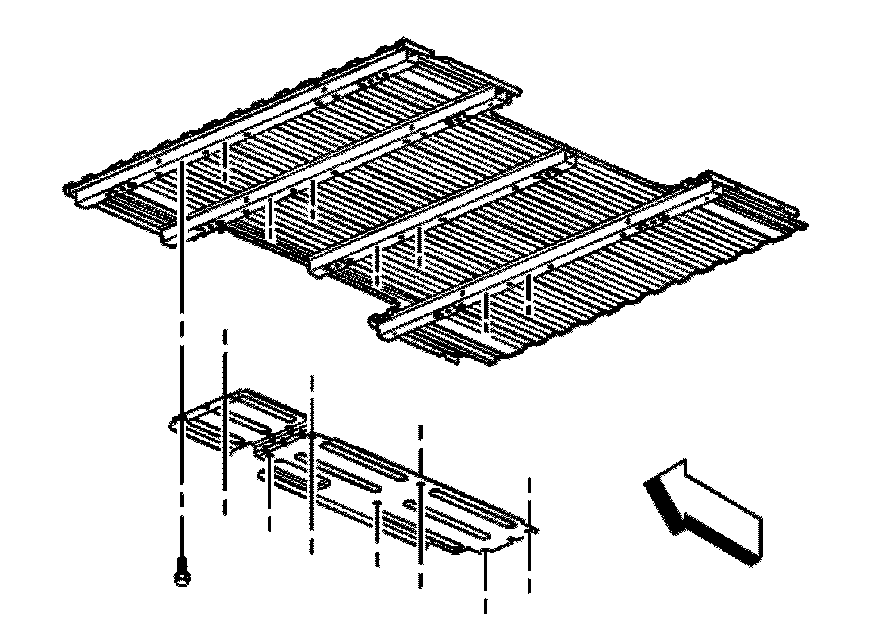

3. If equipped with a 6 1/2 ft box, remove the exhaust heat shield bolts.
4. Remove the exhaust heat shield.

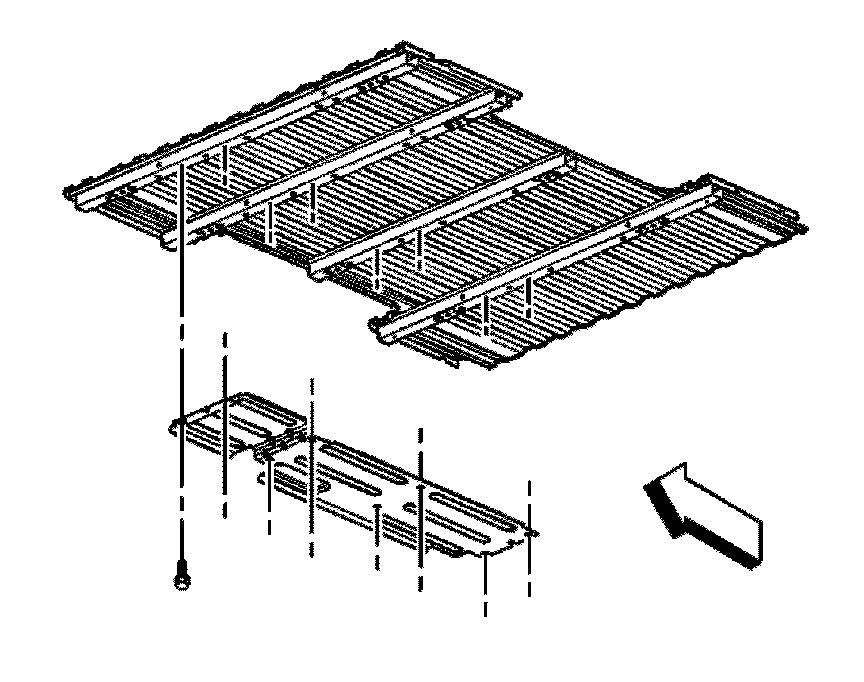

5. If equipped with a 8 ft box, remove the exhaust heat shield bolts.
6. Remove the exhaust heat shield.

Installation Procedure

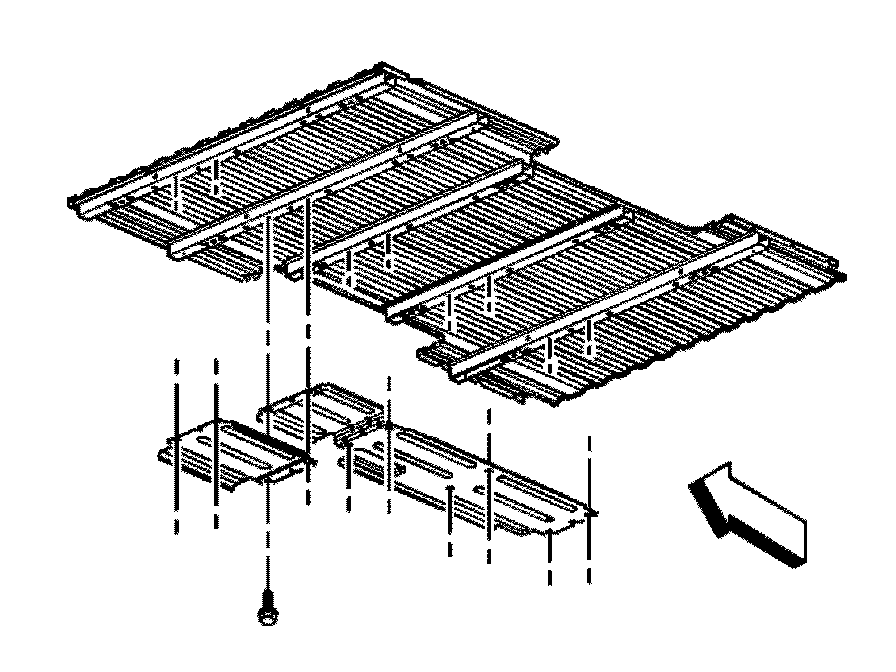

1. If equipped with a 8 ft box, install the exhaust heat shield.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

2. Install the exhaust heat shield bolts. Tighten the exhaust heat shield bolts to 9 Nm (80 lb in).






3. If equipped with a 6 1/2 ft box, install the exhaust heat shield.
4. Install the exhaust heat shield bolts. Tighten the exhaust heat shield bolts to 9 Nm (80 lb in).
5. Install the spare tire hoist. Refer to Spare Wheel Hoist Replacement, Service and Repair
6. Install the exhaust muffler. Refer to Muffler Replacement, Service and Repair
