Relay Block - I/P C7 (With RPO Code Z82)
Relay Block - I/P C7 (With RPO Code Z82)

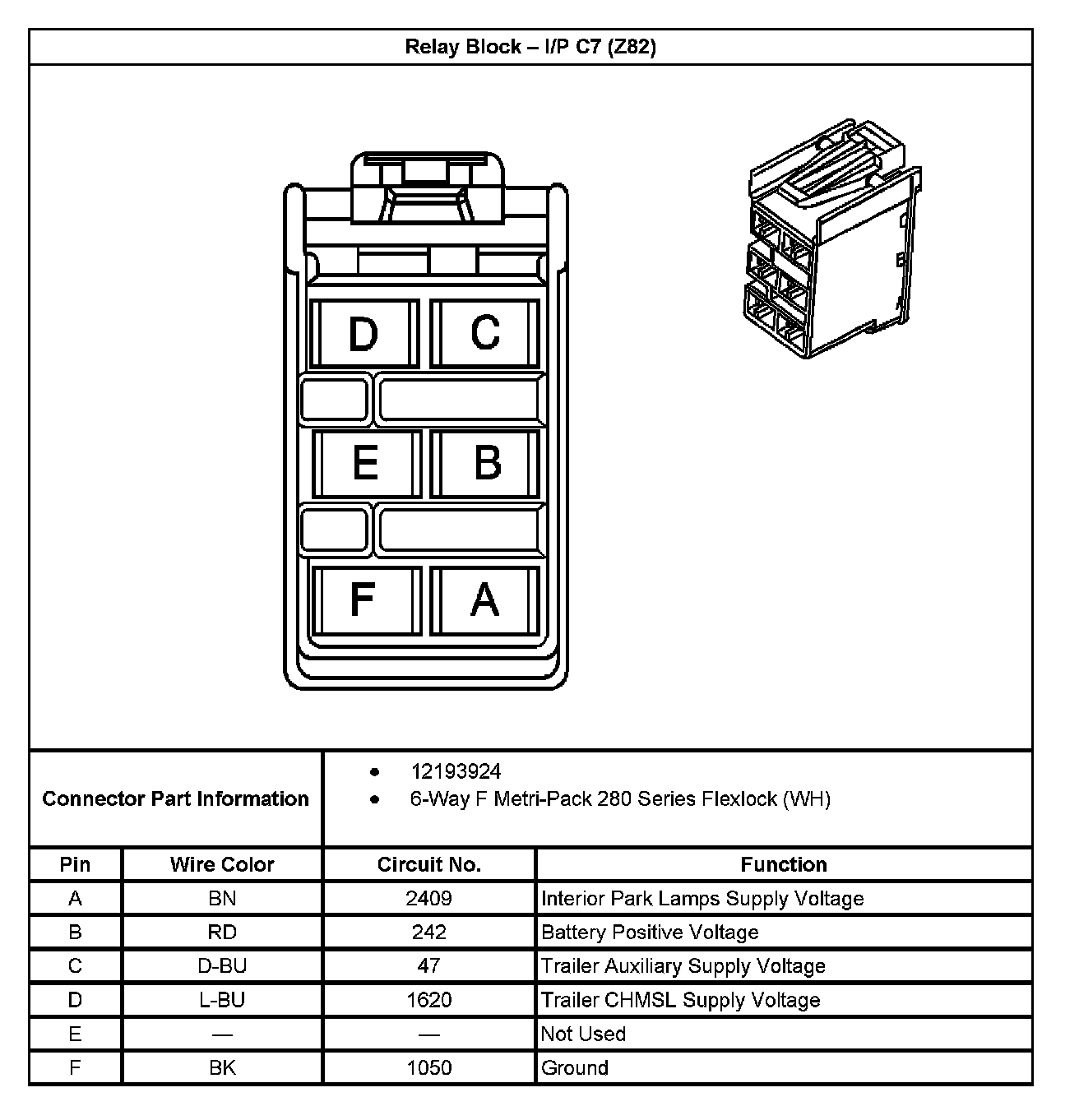

Relay Block - I/P C7 (With RPO Code Z82):
