Disc Brake Splash Shield Replacement - Front 1500 Series

Disc Brake Splash Shield Replacement - Front (1500 Series)

Caution: Refer to Brake Dust Caution in Service Precautions.

Removal Procedure

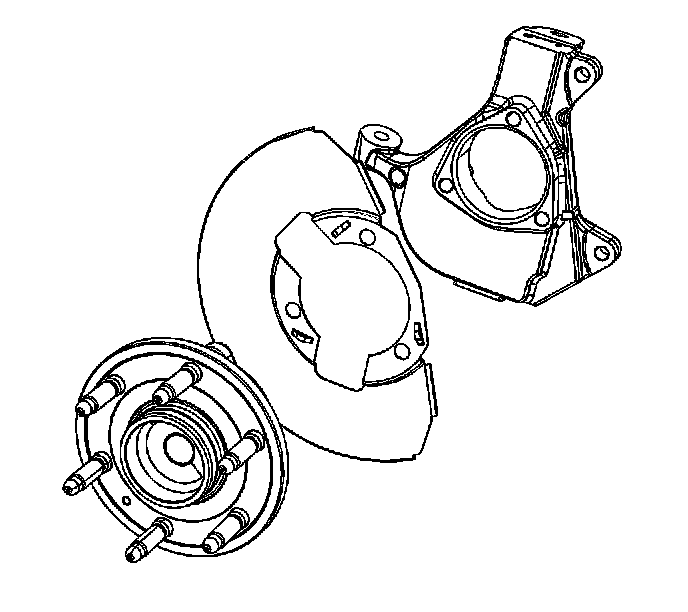

1. Remove the hub and bearing assembly.
2. Remove the splash shield.

Installation Procedure





1. Install the splash shield.
2. Install the hub and bearing assembly.
