Home
>>
Chevy Truck
>>
2005
>>
Silverado 1500 2WD V8-5.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Fluid Pump, A/T
Fluid Pump, A/T

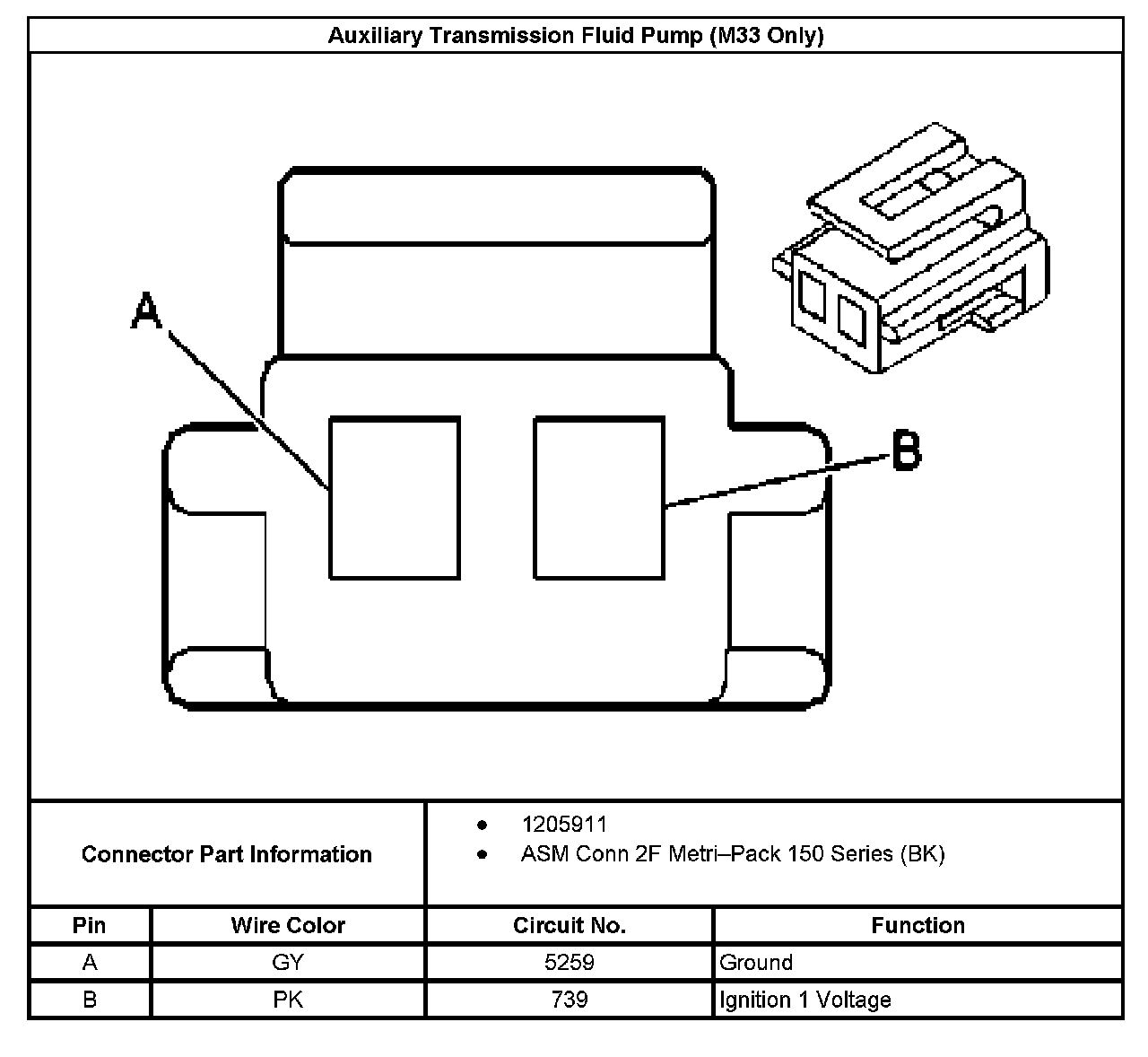

Auxiliary Transmission Fluid Pump (M33 Only):
