Right Floor

AIR OUTLET REPLACEMENT - RIGHT FLOOR

REMOVAL PROCEDURE

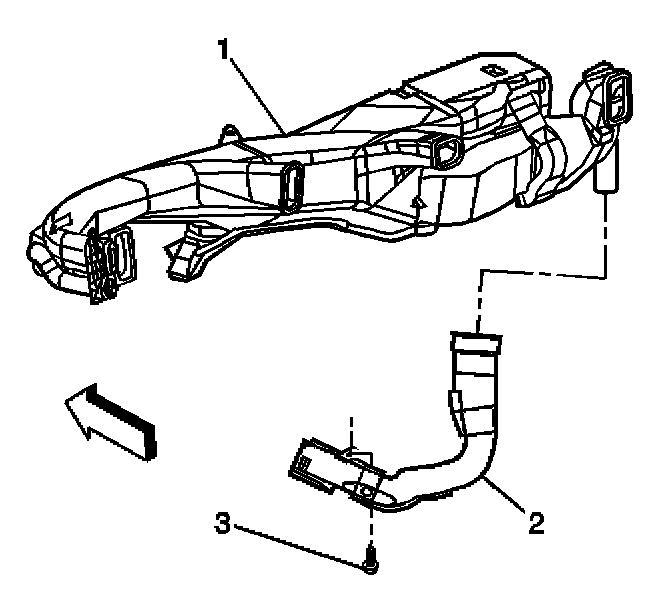

1. Remove the right floor outlet duct retaining screw (3) from the I/P support bracket.
2. Remove the right floor outlet duct.

INSTALLATION PROCEDURE

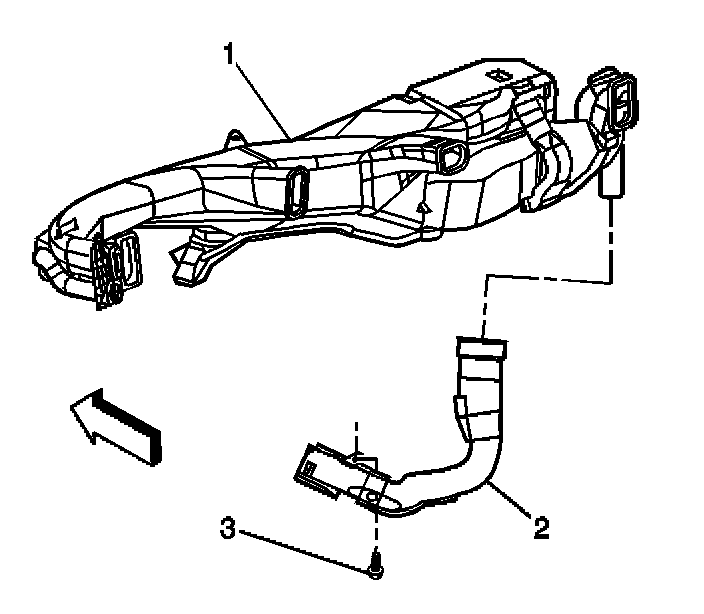

1. Install the right floor outlet duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the right floor outlet duct screw (3) to the I/P support bracket.

Tighten
Tighten the screw to 2 N.m (18 lb in).
