Left Floor

AIR OUTLET DUCT REPLACEMENT - LEFT FLOOR

REMOVAL PROCEDURE

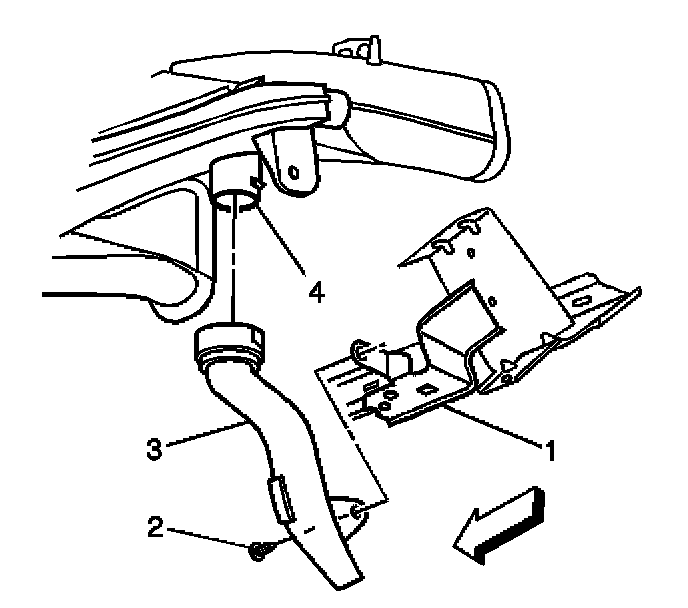

1. Remove the lower air outlet duct screw (2) from the I/P bracket (1).
2. Remove the lower air outlet duct from the air distribution duct.

INSTALLATION PROCEDURE

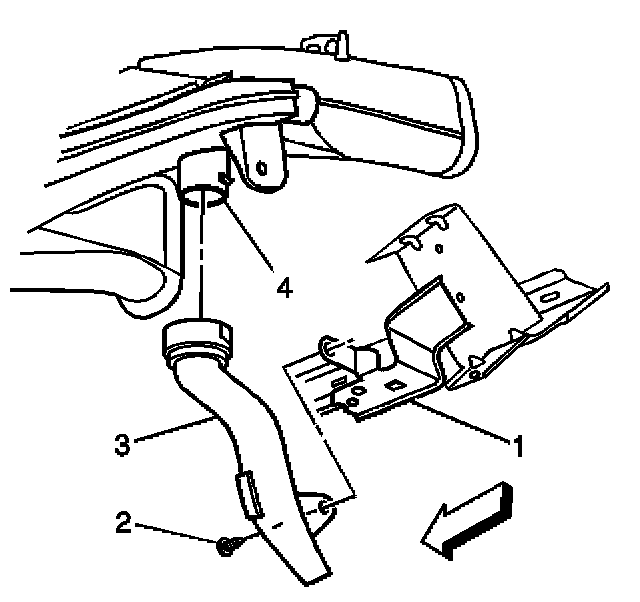

1. Install the lower air outlet duct (3) to the air distribution duct (4).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the lower air outlet duct screw to the I/P bracket.

Tighten
Tighten the screw to 2 N.m (18 lb in).
