Home >> Chevy Truck >> 2005 >> Express 1500 RWD V8-5.3L VIN T >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

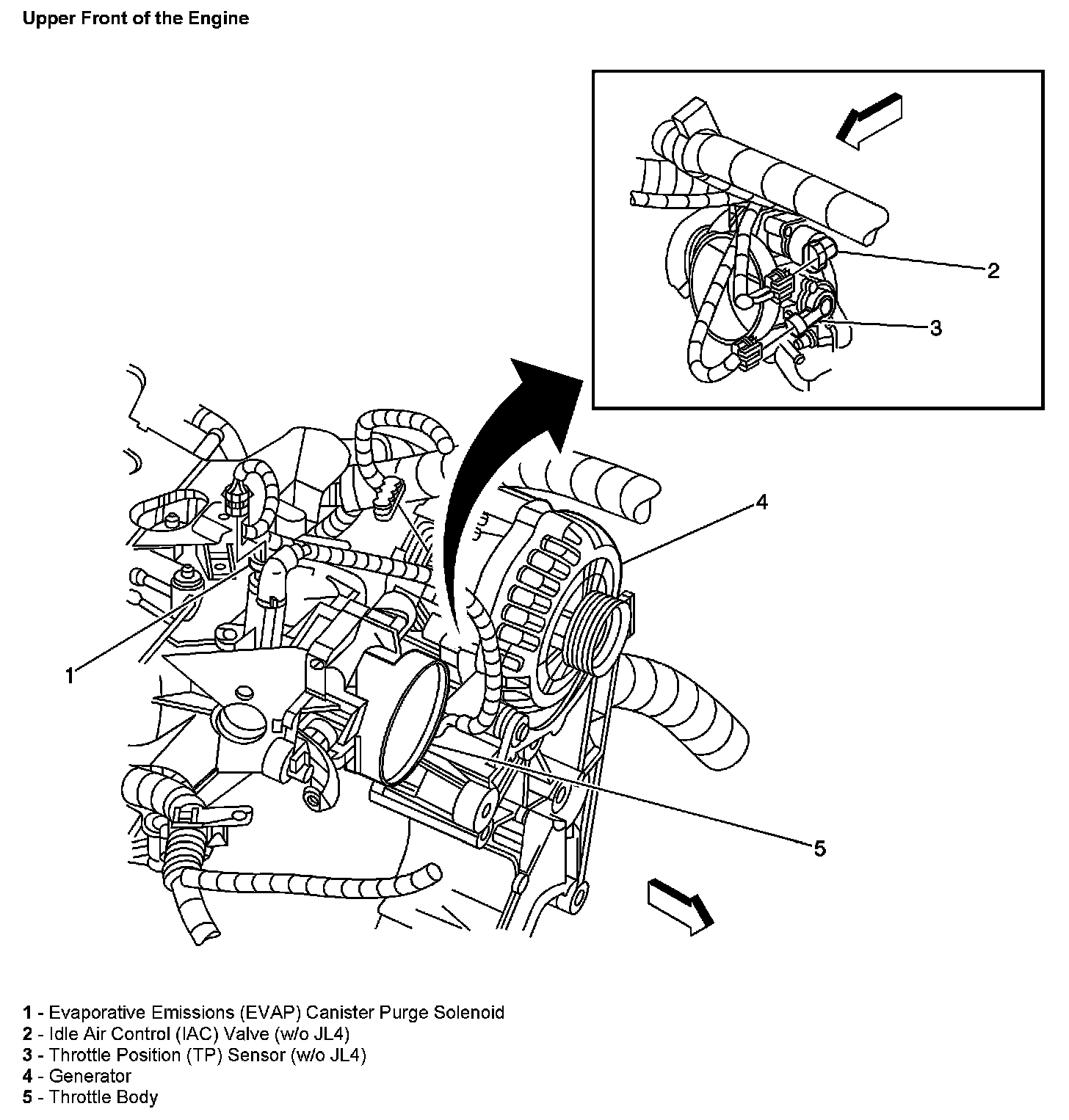

Throttle Position Sensor: Locations

Upper Front Of The Engine:
