Home
>>
Chevy Truck
>>
2005
>>
Express 1500 RWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

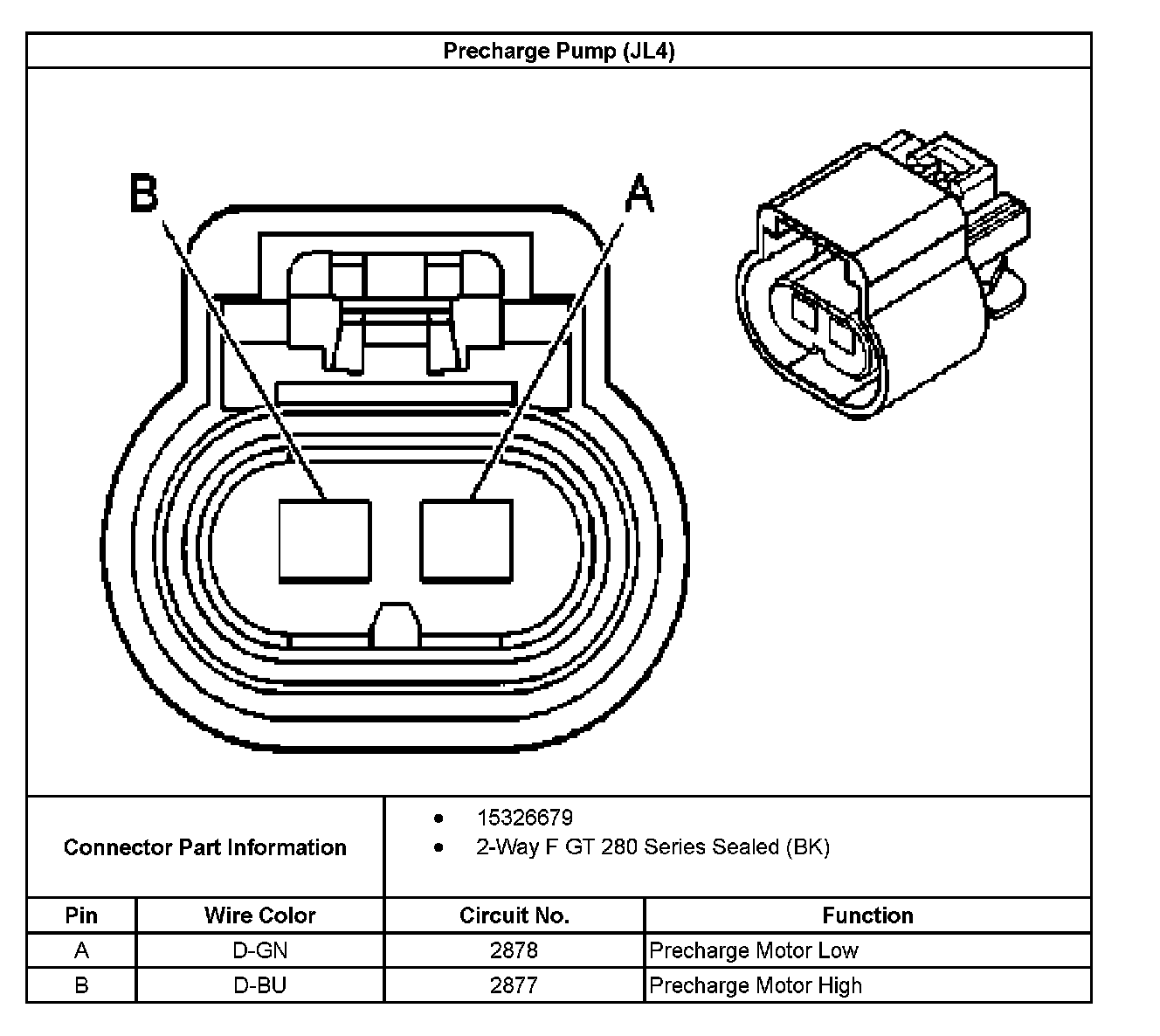

Precharge Pump - JL4:
