Home >> Chevy Truck >> 2005 >> Express 1500 AWD V8-5.3L VIN T >> Repair and Diagnosis >> Locations >> Splice Locations >> Splice/Splice Packs By Number >> S400 - S499 >> S403

S403

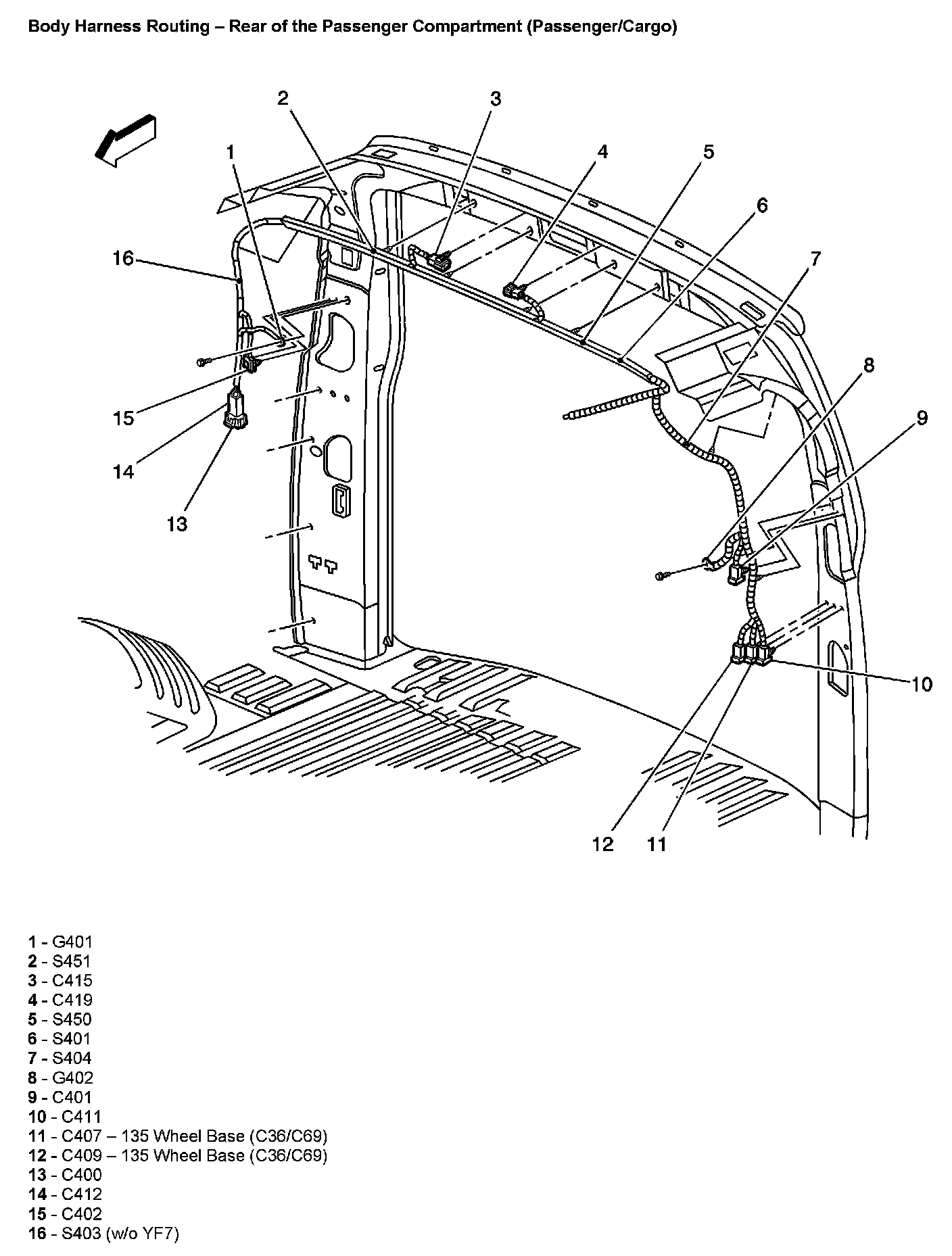

Body Harness Routing Rear Of The Passenger Compartment (Passenger/Cargo):
