Chevy Truck
>>
2005
>>
Express 1500 AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Outside Rearview Mirror
Outside Rearview Mirror
Outside Rearview Mirror - Driver (With RPO Code DE5 And DE7):

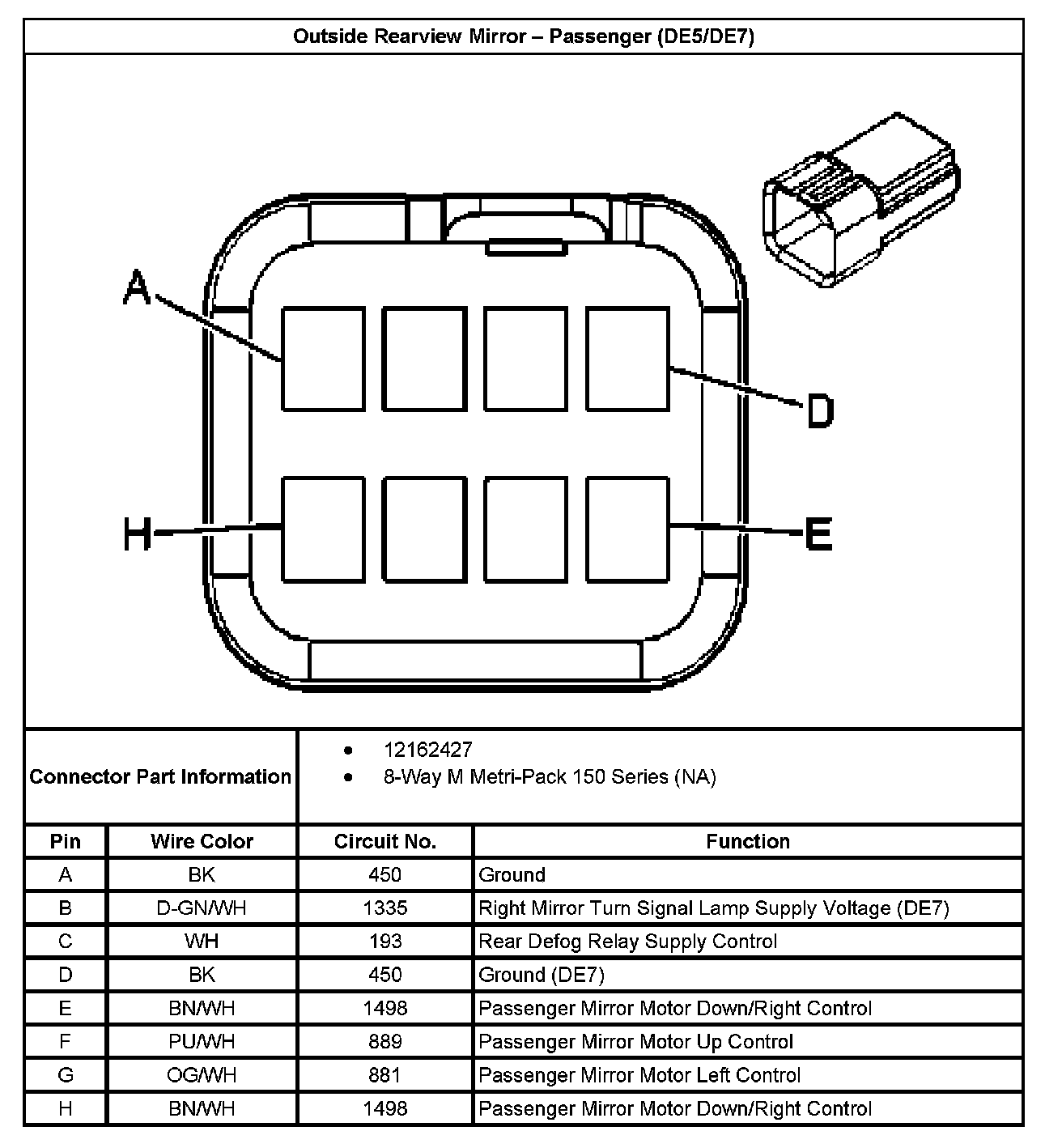

Outside Rearview Mirror - Passenger (With RPO Code DE5 And DE7):
