Headlamp
>>
System Diagram
>>
Headlamp Assembly
Headlamp Assembly
Headlamp - Left (Sealed):

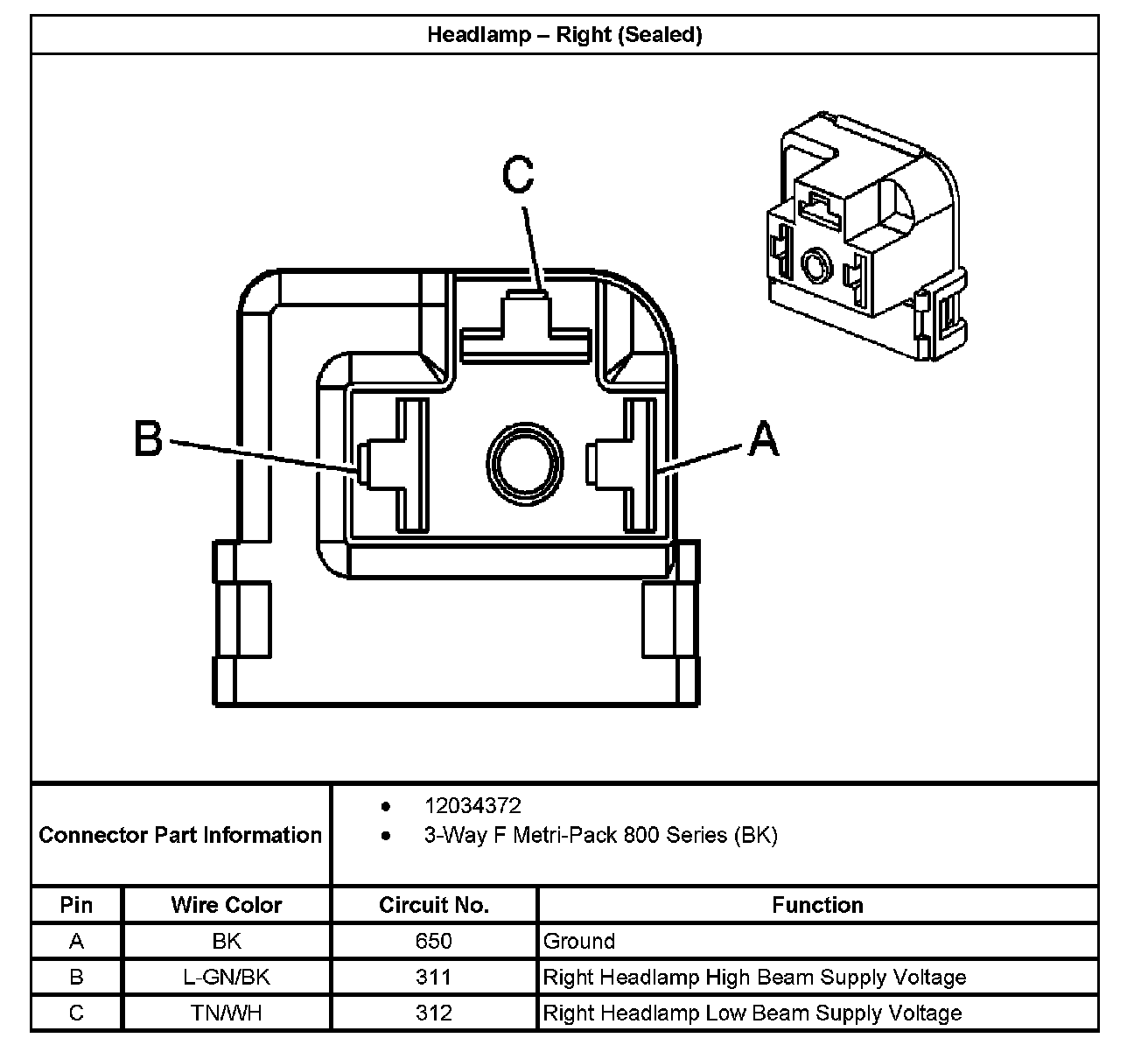

Headlamp - Right (Sealed):
