Center Front

SEAT BELT REPLACEMENT - CENTER FRONT

REMOVAL PROCEDURE

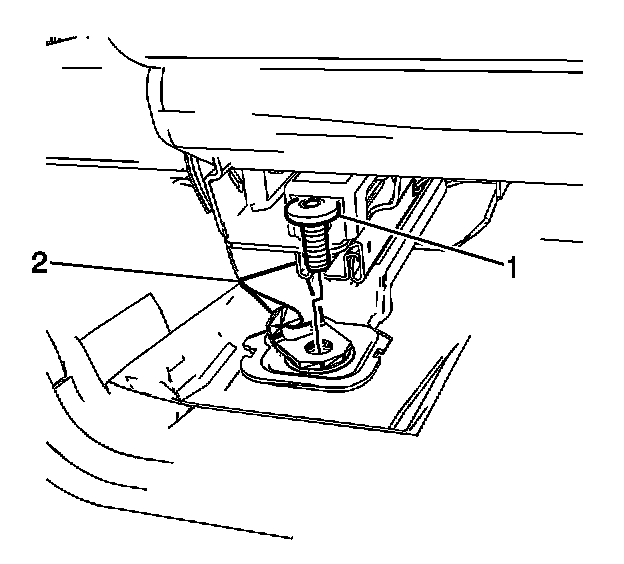

1. Remove the rear inboard seat bolt (1) from the passenger seat.
2. Remove the grommet securing the center seat belt assembly (2) to the seat adjuster.
3. Remove the center seat belt assembly.

INSTALLATION PROCEDURE




1. Position the center seat belt assembly (2) over the rear inboard seat adjuster mounting hole.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the front seat mounting bolt (1).

Tighten
Tighten the front seat mounting bolt to 52.5 N.m (39 lb ft).
