Center Front

SEAT BELT BUCKLE REPLACEMENT - CENTER FRONT

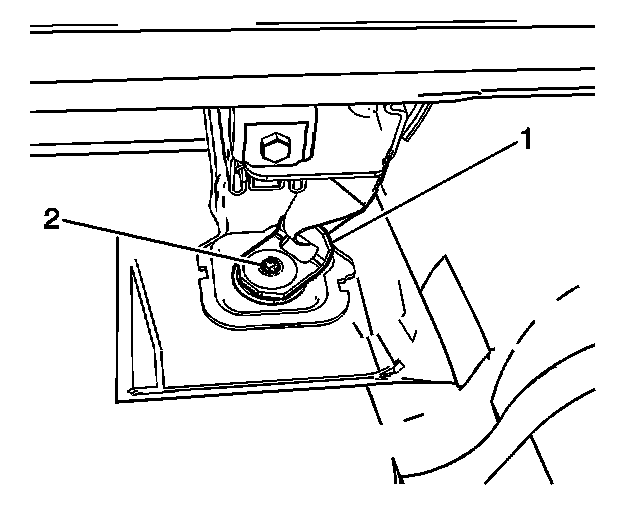

REMOVAL PROCEDURE




1. Remove the rear inboard seat bolt from the driver's seat.
2. Remove the grommet securing the center seat belt buckle assembly (1) to the seat adjuster.
3. Remove the center seat belt buckle assembly (1).

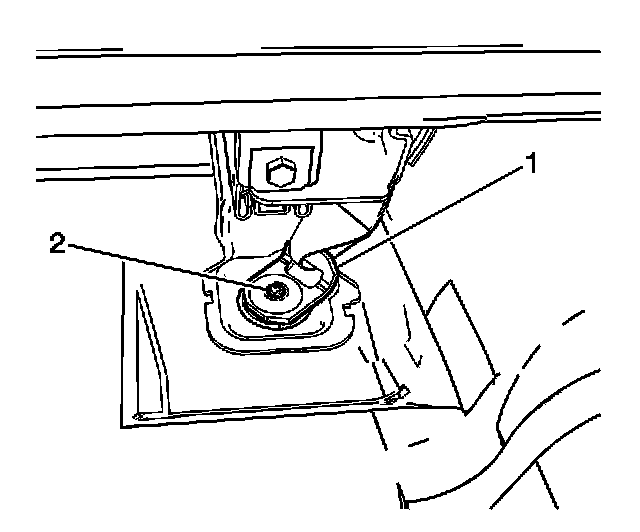

INSTALLATION PROCEDURE




1. Position the seat belt buckle assembly (1) over the rear inboard seat adjuster mounting hole.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the front seat mounting bolt (2).

Tighten
Tighten the front seat mounting bolt to 52.5 N.m (39 lb ft).
