Water Outlet Housing Replacement

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure





1. Drain the cooling system.

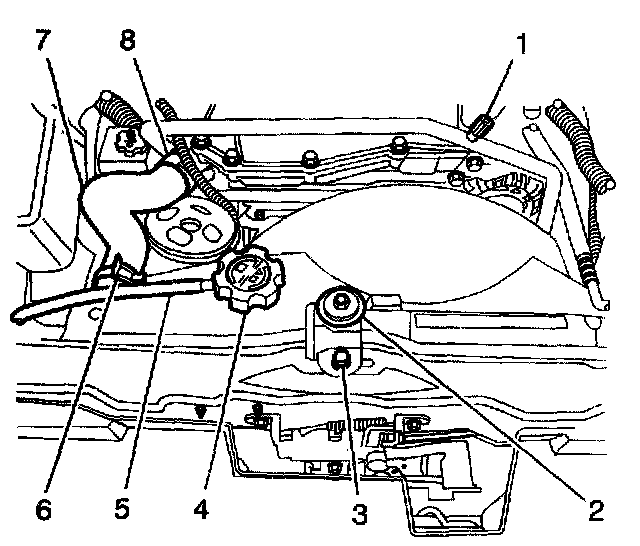

2. Position the J 38185 to the clamp (8) in larder to remove the radiator outlet hose (7) from the water outlet housing.
3. Remove the power steering pump bracket.





4. Remove the water outlet housing bolts.

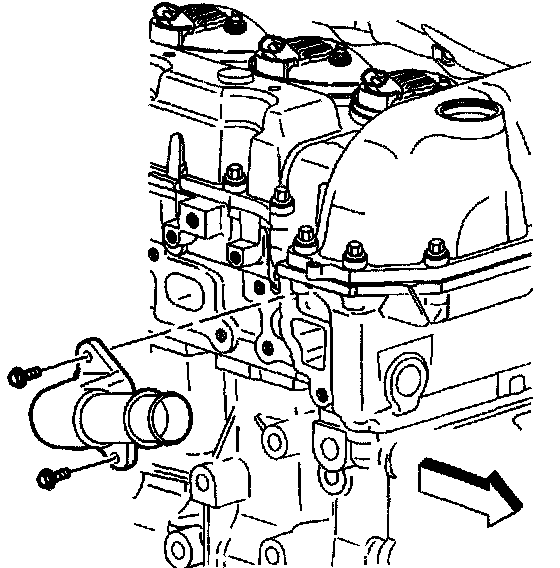

5. Remove the water outlet housing from the cylinder head.
6. Clean and inspect the water outlet housing
7. Clean and inspect the sealing surface of the cylinder head.

Installation Procedure

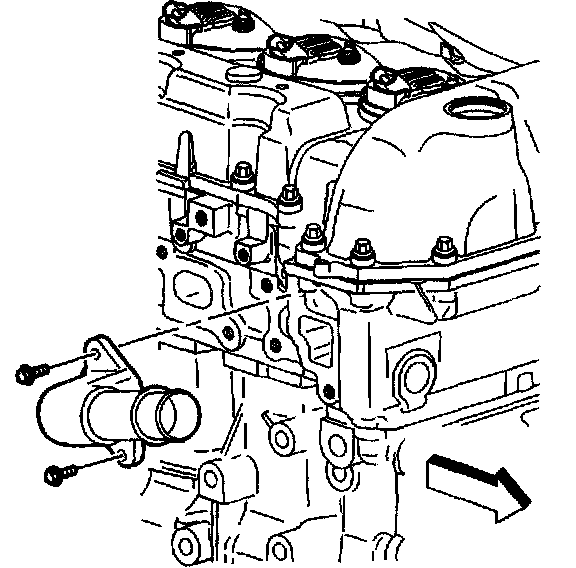

1. Position the water outlet housing to the cylinder head.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the water outlet housing bolts.
^ Tighten the water outlet housing bolts to 10 Nm (89 inch lbs.).
3. Install the power steering pump bracket.

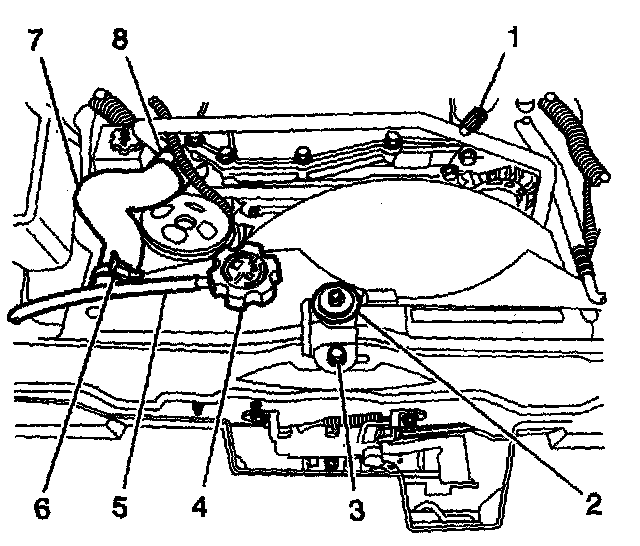

4. Position the J 38185 to the clamp (8) in order to connect the radiator outlet hose (7) to the water outlet housing.
5. Fill the cooling system.
6. Inspect all sealing surfaces leaks after starting the engine.
