Pilot Bearing: Service and Repair

Pilot Bearing Replacement

^ Tools Required
- J 43276 Clutch Pilot Bearing Remover
- J 26516-A Clutch Pilot Bearing Installer
- J 8092 Driver Handle

Removal Procedure





1. Remove the Flywheel.

2. Caution: Refer to Safety Glasses Caution in Service Precautions.

Notice: When using the J 43276 Clutch Pilot Bearing Remover, always secure the J 43276-1 Clutch Pilot Bearing Remover tool body using a wrench. Do not allow the J 43276-1 tool body to rotate. Failing to do so causes damage to the J 43276-1 tool body.

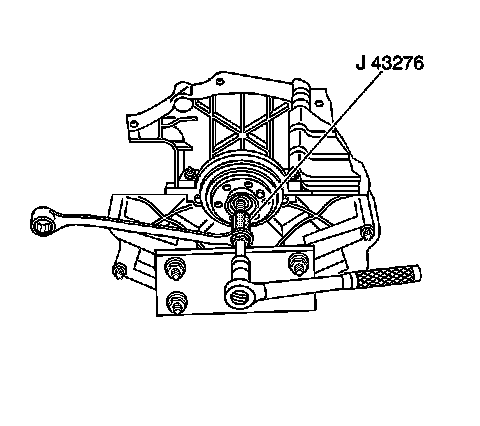

Remove the clutch pilot bearing using the J 43276.
1. Install the J 43276-1 tool body into the clutch pilot bearing.
2. Using a wrench secure the J 43276-1 tool body.
3. Insert the J 43276-2 forcing screw into the J 43276-1 tool body.
4. Rotate the J 43276-2 forcing screw clockwise into the J 43276-1 tool body until the clutch pilot bearing is completely removed from the crankshaft.
5. Rotate the J 43276-2 forcing screw counterclockwise to remove the J 43276-2 forcing screw from the J 43276-1 tool body.
6. Remove the J 43276-1 tool body from the clutch pilot bearing.
3. Discard the clutch pilot bearing.

Installation Procedure





1. Caution: Refer to Safety Glasses Caution in Service Precautions.

Install the NEW clutch pilot bearing using the J 26516-A with the J 8092.

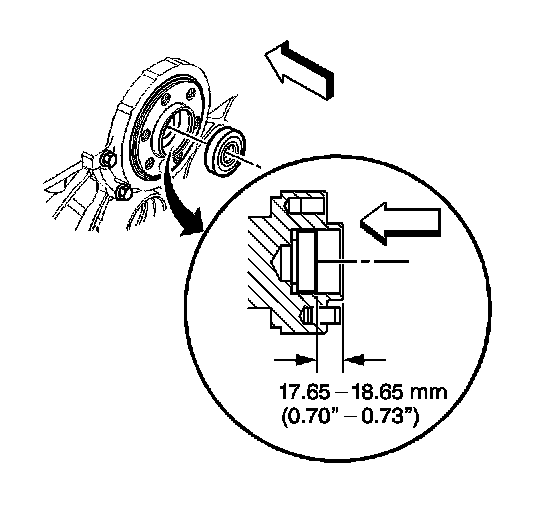

2. Measure to ensure the proper installation depth is obtained.
3. Install the flywheel.
