Transmission Mount: Service and Repair

Transmission Mount Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

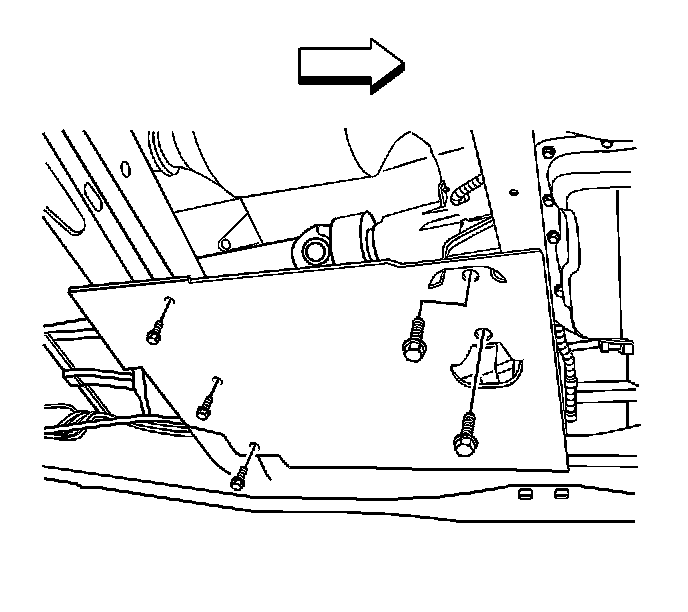

2. Remove the transmission mount shield bolts, if equipped.
3. Remove the transmission mount shield, if equipped.





4. Support the transmission with a transmission jack.
5. Remove the transmission mount to the transmission support retaining nut or nuts.
6. Remove the transmission mount shield bracket, if equipped.





7. Raise the transmission to take the weight off of the mount.
8. Remove the transmission mount to the transmission or transfer case adapter mounting bolts (1).
9. Raise the transmission just enough to remove the transmission mount.
10. Remove the transmission mount from the vehicle.

Installation Procedure





1. Install the transmission mount to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission mount to the transmission or transfer case adapter mounting bolts (1).
^ Tighten the bolts to 50 Nm (37 lb ft).





3. Lower the transmission.
4. Install the transmission mount shield bracket, if equipped.
5. Install the transmission mount to the transmission support retaining nut or nuts.
^ Tighten the nut or nuts to 57 Nm (42 lb ft).
6. Remove the transmission jack.





7. Install the transmission mount shield, if equipped.
8. Install the transmission mount shield bolts, if equipped.
^ Tighten the transmission mount shield front bolts to 50 Nm (37 lb ft).
^ Tighten the transmission mount shield rear bolts to 33 Nm (24 lb ft).
9. Lower the vehicle.
