Chevy Truck
>>
2005
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

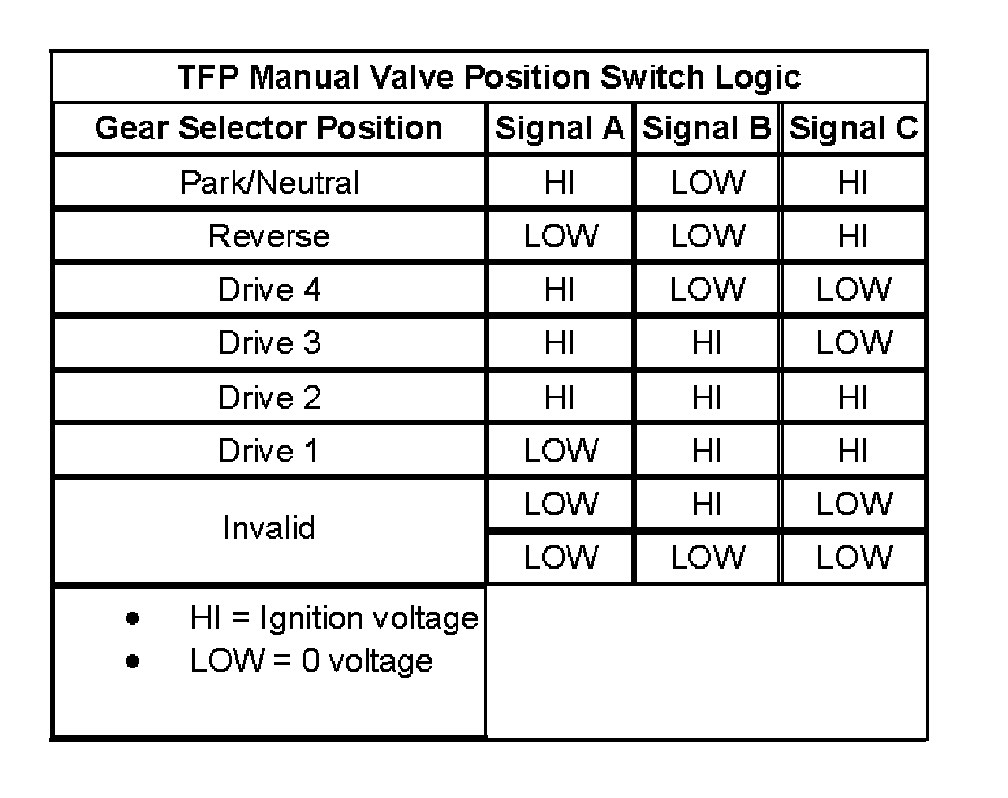

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic
