Chevy Truck
>>
2005
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
LF (Pickup)
LF (Pickup)

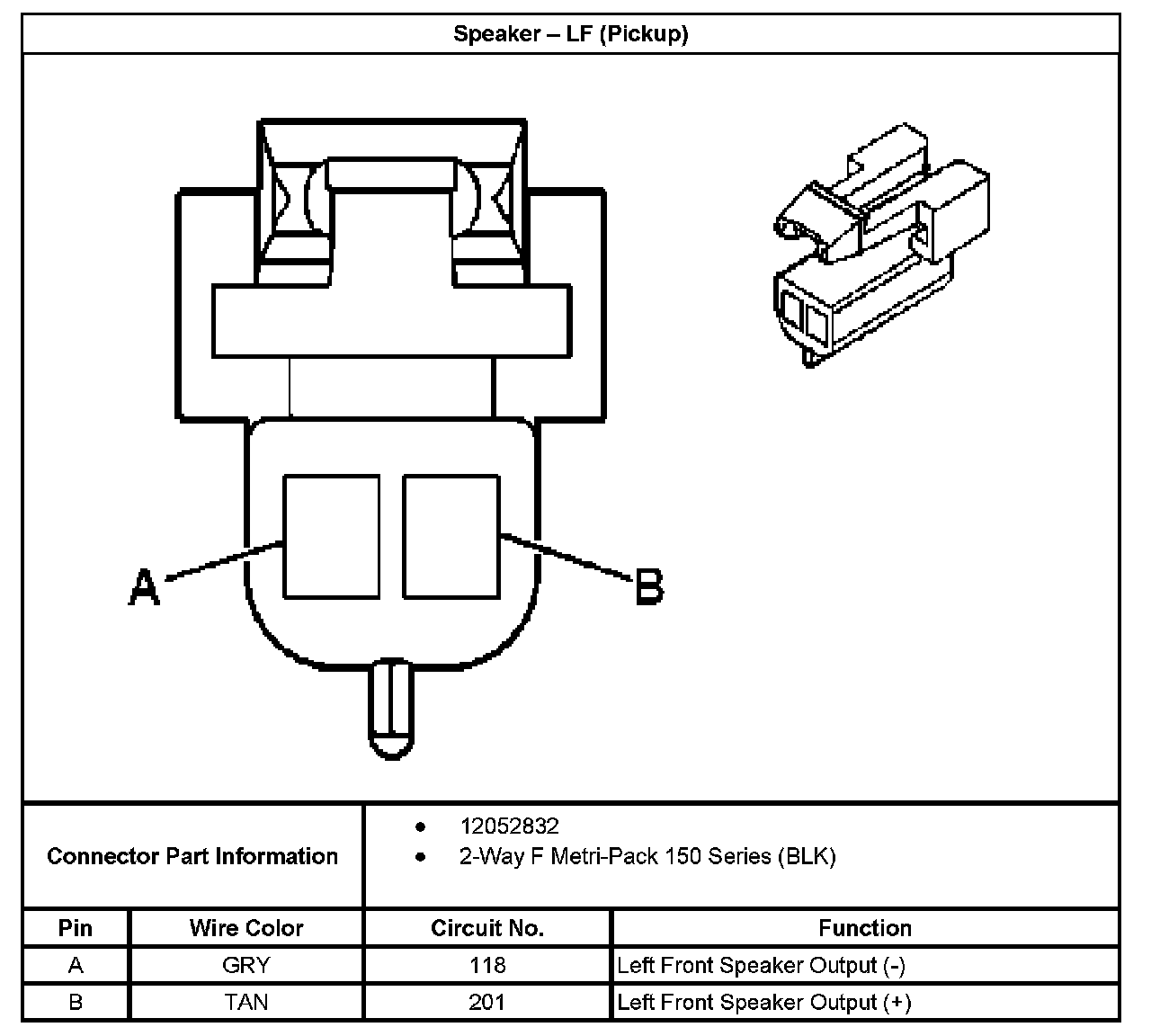

Speaker - LF (Pickup):
