Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2005
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C413
C413

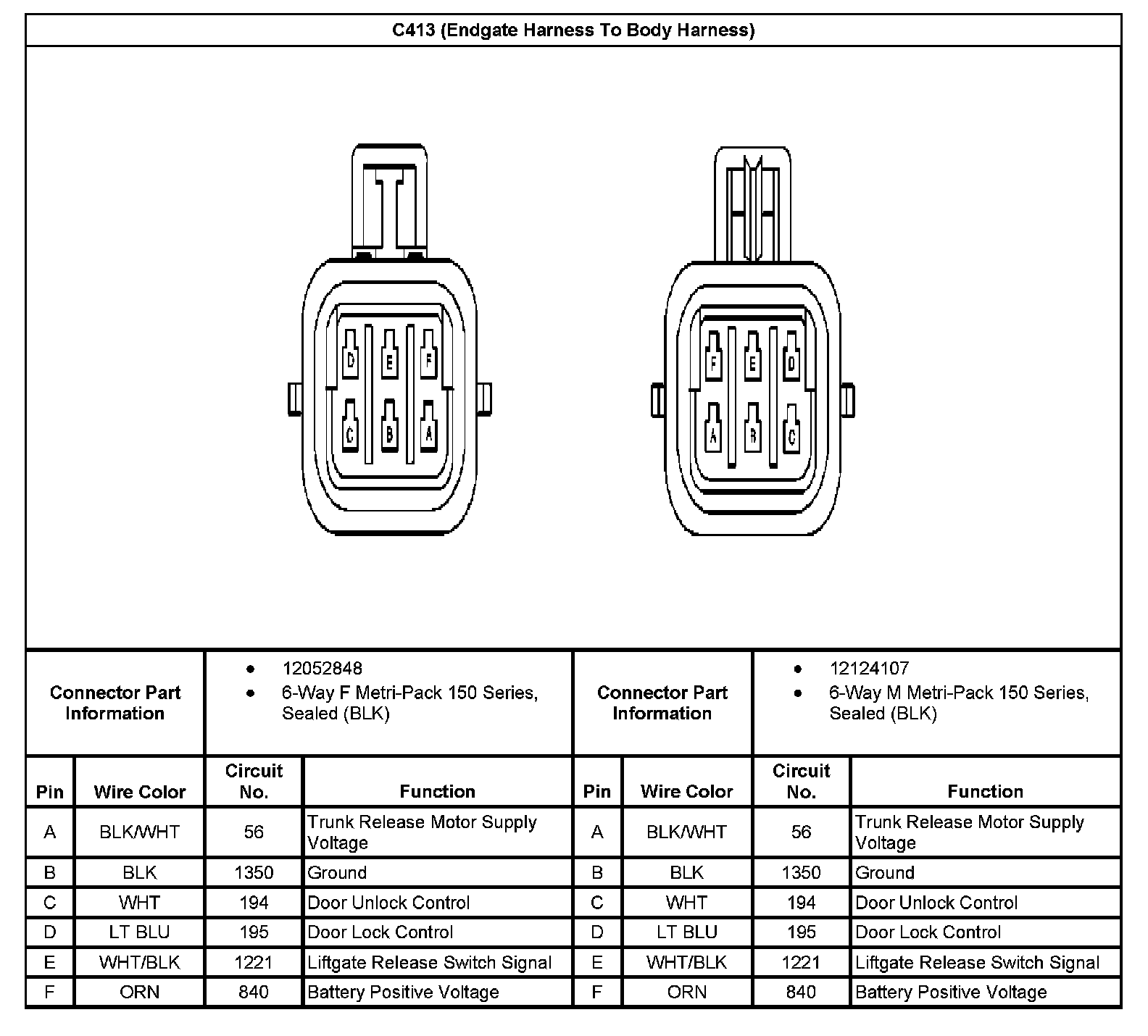

C413 (Endgate Harness To Body Harness):
