Sunroof / Moonroof Weatherstrip: Service and Repair

SUNROOF WINDOW WEATHERSTRIP REPLACEMENT (CF5)

REMOVAL PROCEDURE




1. Remove the sunroof window.

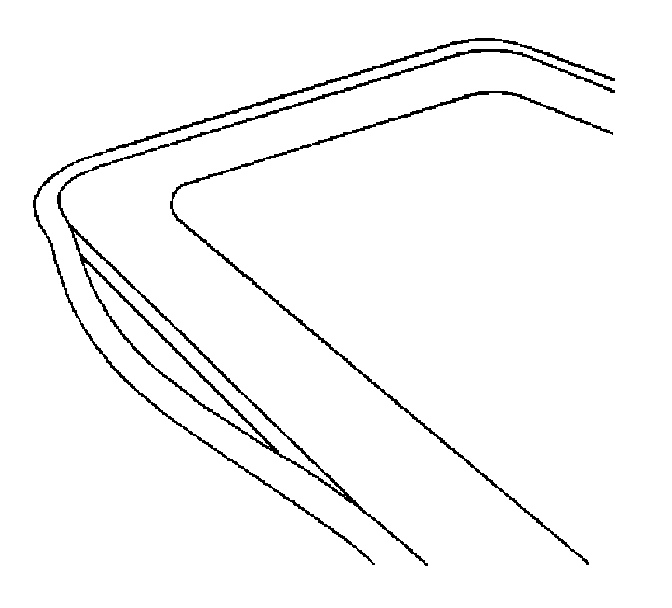

2. Remove the sunroof window weatherstrip from the sunroof window by gently pulling the weatherstrip away at one point and continuing around the perimeter of the window.

INSTALLATION PROCEDURE




1. Locate the seam on the weatherstrip.
2. Place the seam at the center of the rear edge of the sunroof window.
3. Firmly press the weatherstrip into place. Ensure that the weatherstrip is seated properly around the entire perimeter of the window.
4. Install the sunroof window.
