Power Seat Motor: Service and Repair

SEAT ADJUSTER MOTOR GUARD REPLACEMENT

REMOVAL PROCEDURE

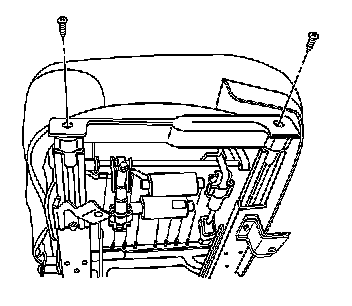

1. Remove the 2 screws securing the guard to the seat.
2. Remove the guard.

INSTALLATION PROCEDURE




1. Position the guard on the front of the seat adjuster assembly.
2. Install the guard to the seat with the 2 screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 1.9 N.m (17 lb in).
