Seat Horizontal Motor
Seat Horizontal Motor

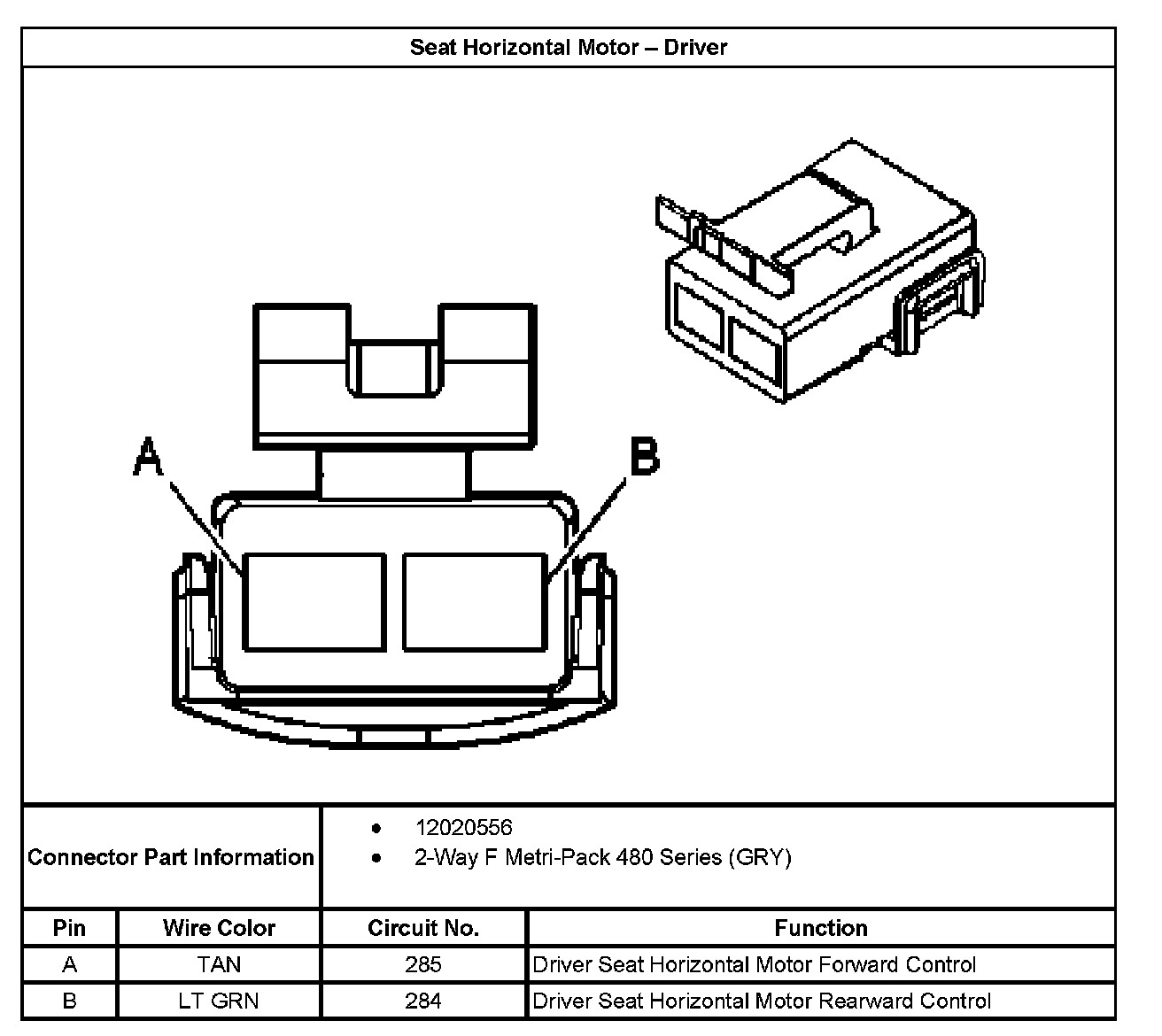

Seat Horizontal Motor - Driver:

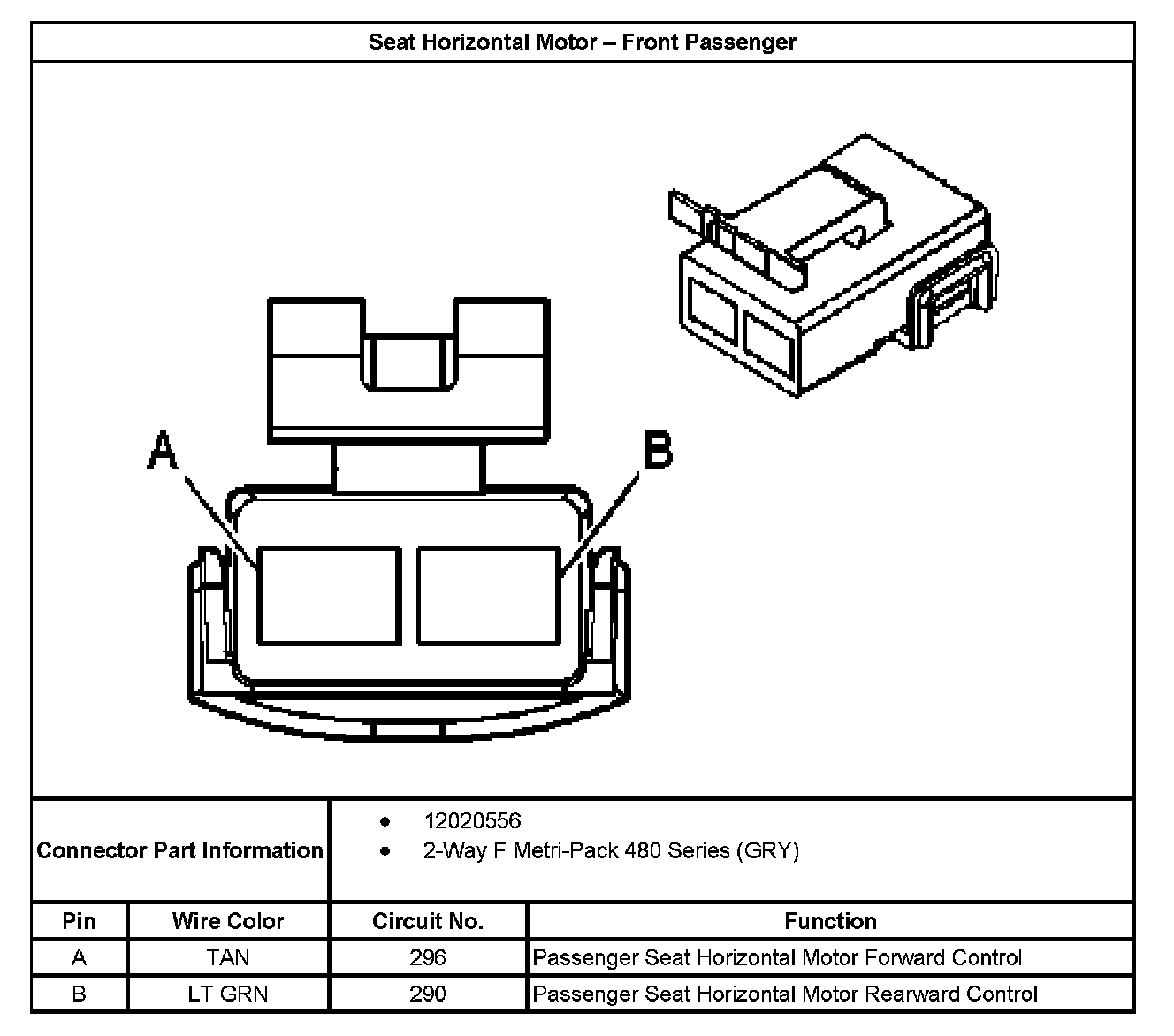

Sear Horizontal Motor - Front Passenger:
