Chevy Truck
>>
2005
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
Seat Temperature Control Module

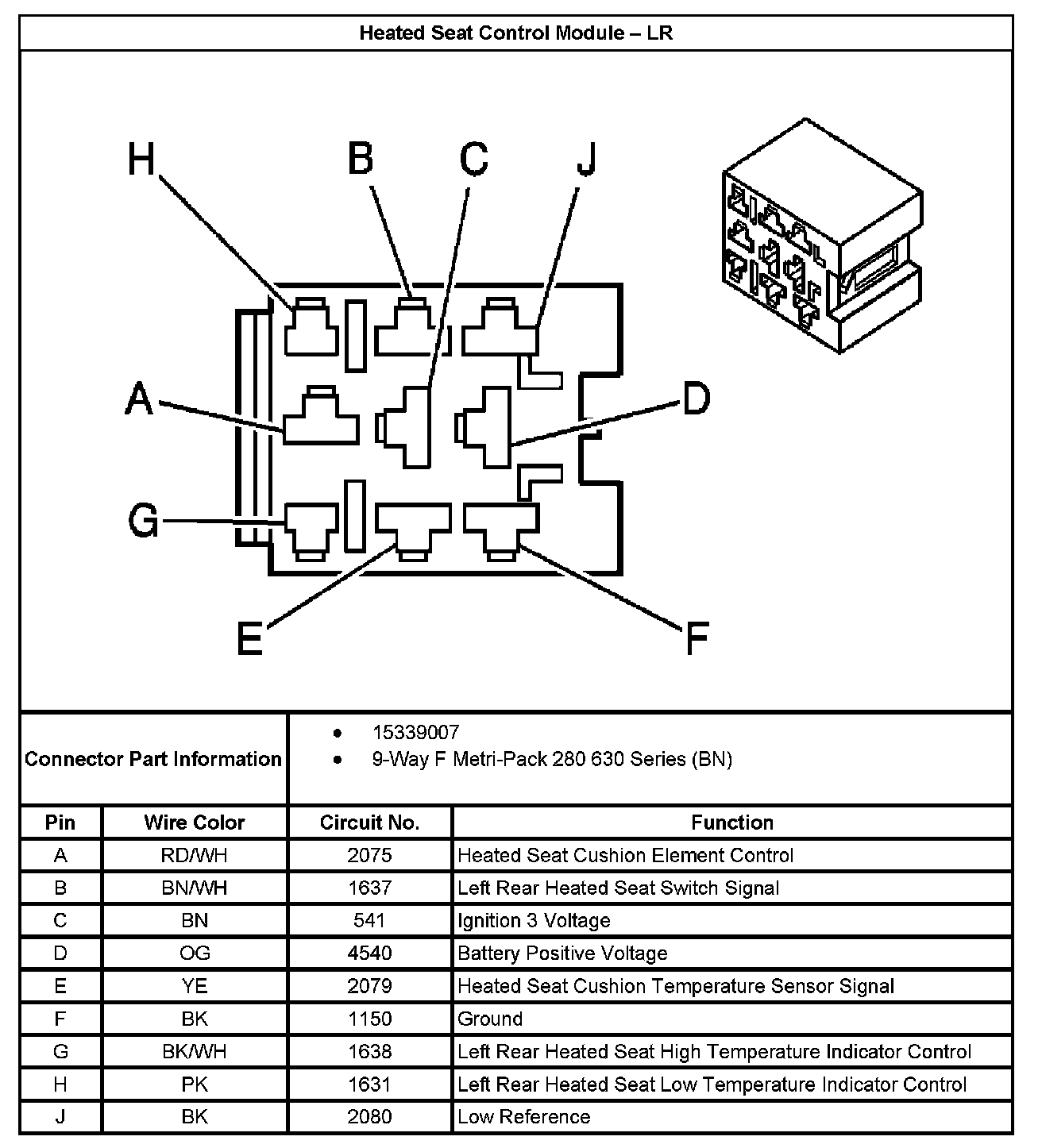

Heated Seat Control Module - LR:

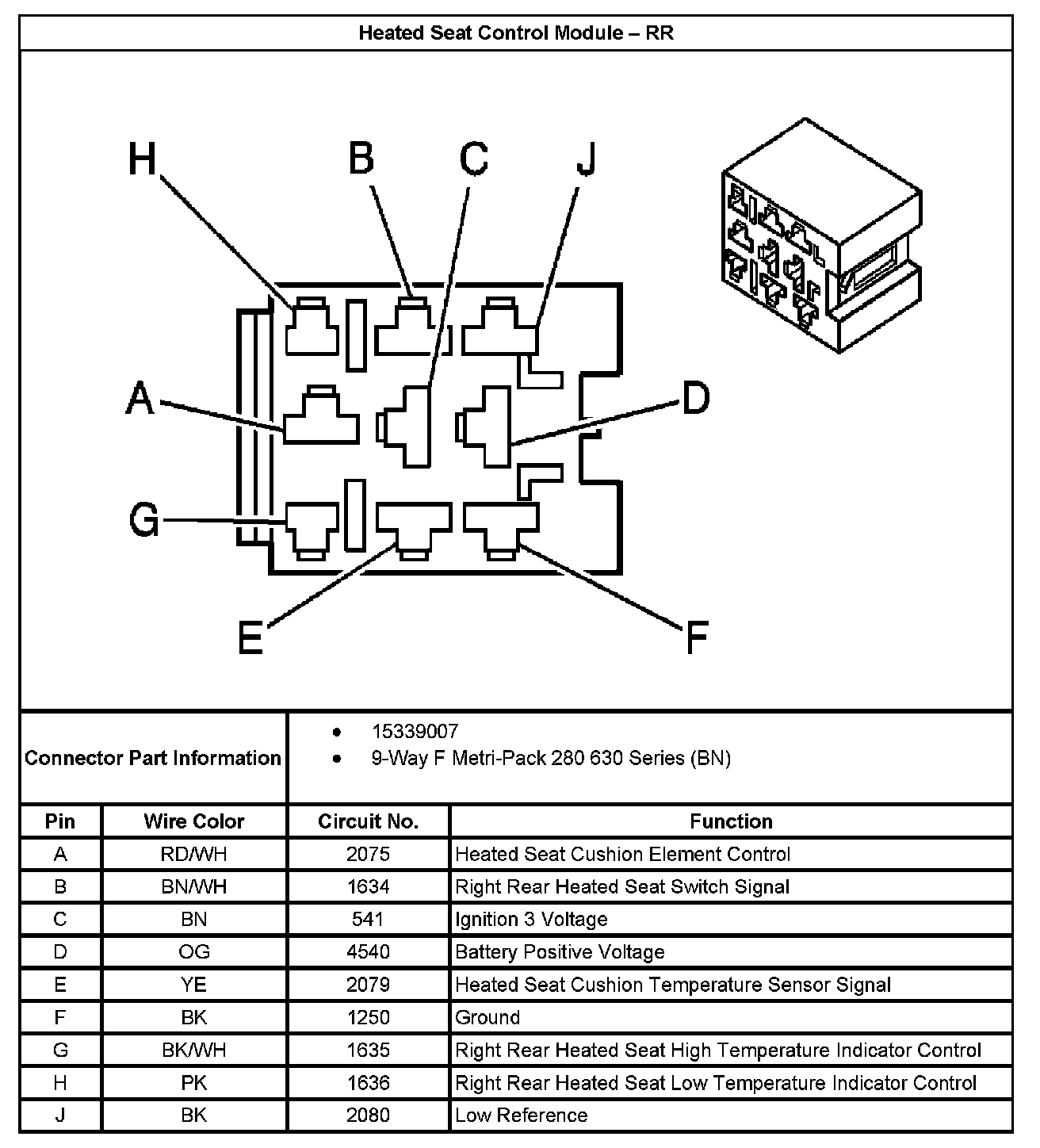

Heated Seat Control Module - RR:
