Chevy Truck
>>
2005
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>

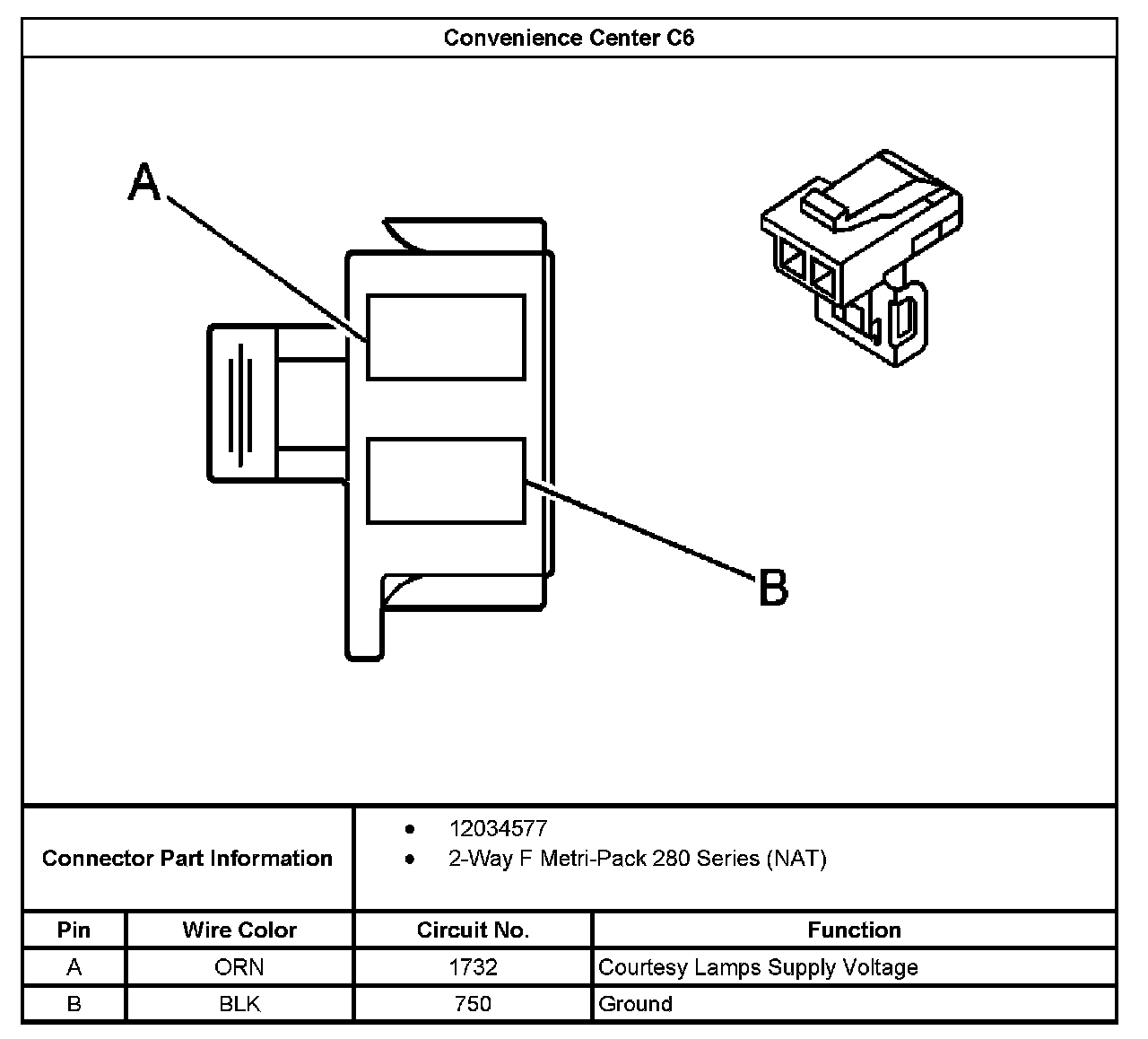

Convenience Center C6
Convenience Center C6
Convenience Center C6:
