Canister Purge Solenoid: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID VALVE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the engine cover.

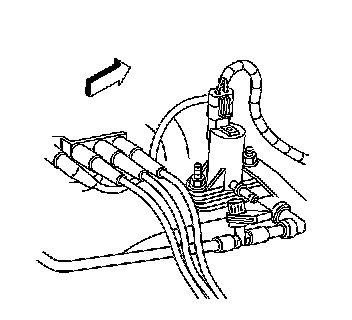

2. Remove the engine wiring harness bracket from the stud.

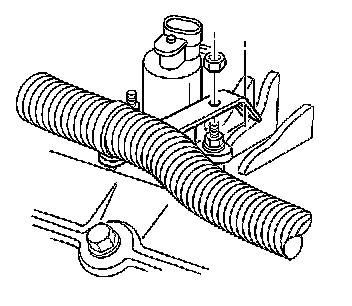

3. Disconnect the evaporative emissions (EVAP) canister purge pipe.

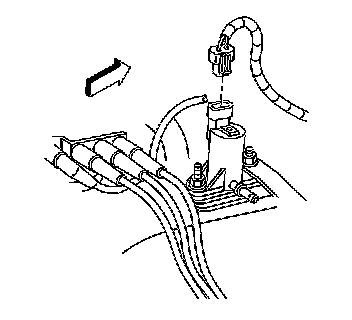

4. Disconnect the EVAP canister purge valve harness connector.

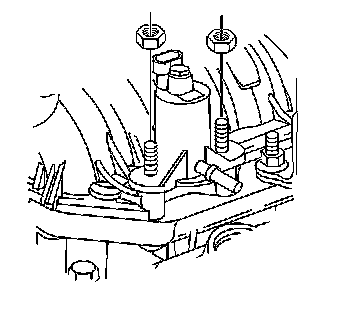

5. Remove the EVAP canister purge valve mounting nuts.

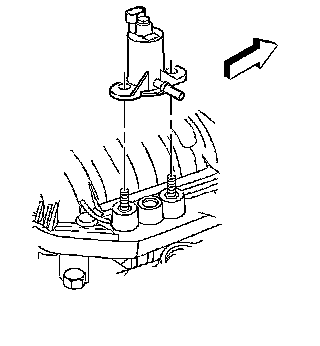

6. Remove the EVAP canister purge valve from the intake manifold.

INSTALLATION PROCEDURE




1. Install the EVAP canister purge valve to the intake manifold.




2. Install the EVAP canister purge valve mounting nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 12 N.m (106 lb in).




3. Connect the EVAP canister purge valve harness connector.




4. Connect the EVAP canister purge pipe.




5. Install the engine wiring harness bracket to the stud.

Tighten the bracket nut to 8 N.m (71 lb in).

6. Install the engine cover.
