License Plate Bulb: Service and Repair

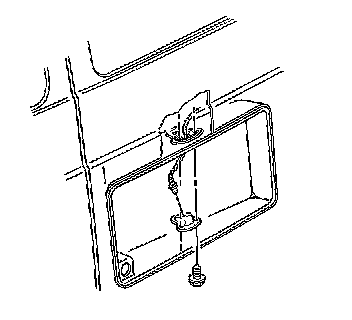

LICENSE LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Turn OFF the headlamp switch.
2. Remove the screws from the license lamp.
3. Remove the bulb.

INSTALLATION PROCEDURE




1. Install the bulb.
2. Install the license lamp.
3. Install the license lamp screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the license lamp screws to 2 Nm (18 lb in).
