Home >> Chevy Truck >> 2005 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Front Blower Controls W/ Front A/C

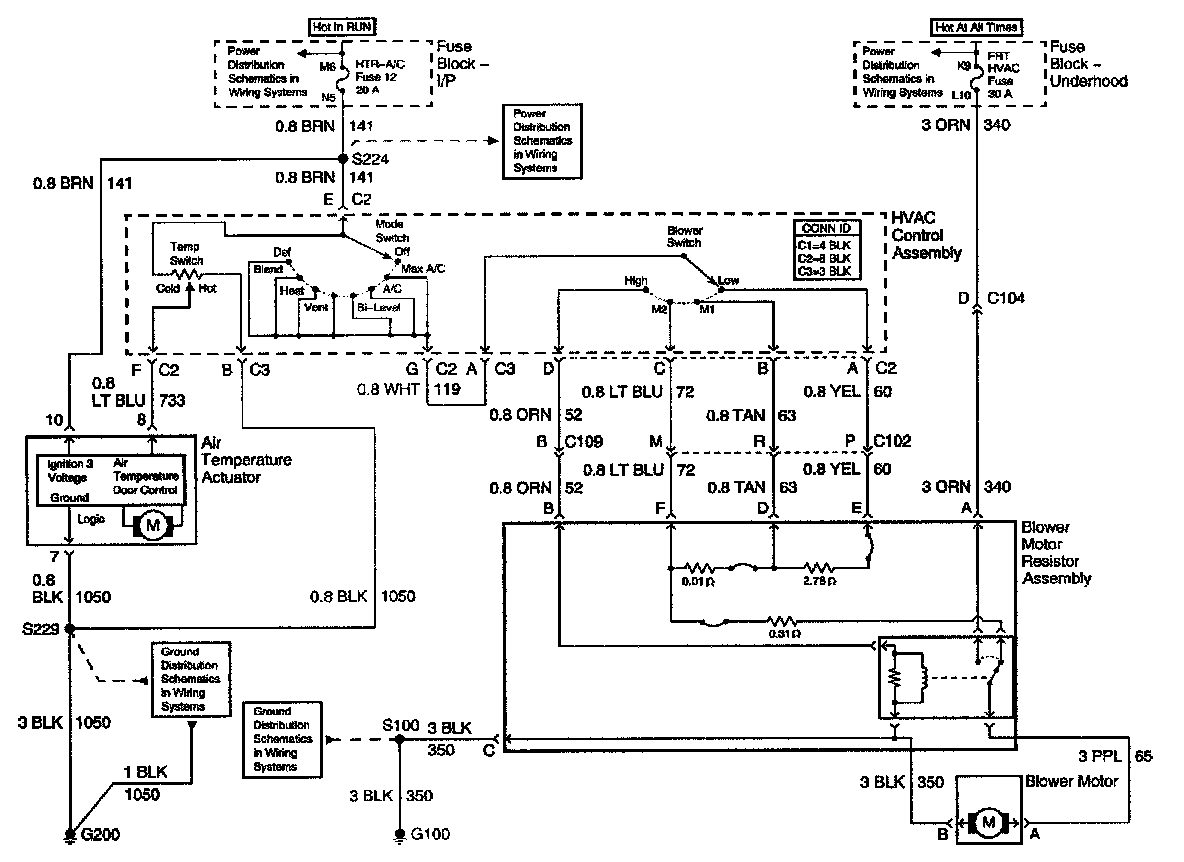

Front Blower Controls W/ Front A/C

Front Blower Controls W/ Front A/C:
