Home
>>
Chevy Truck
>>
2005
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C109
C109

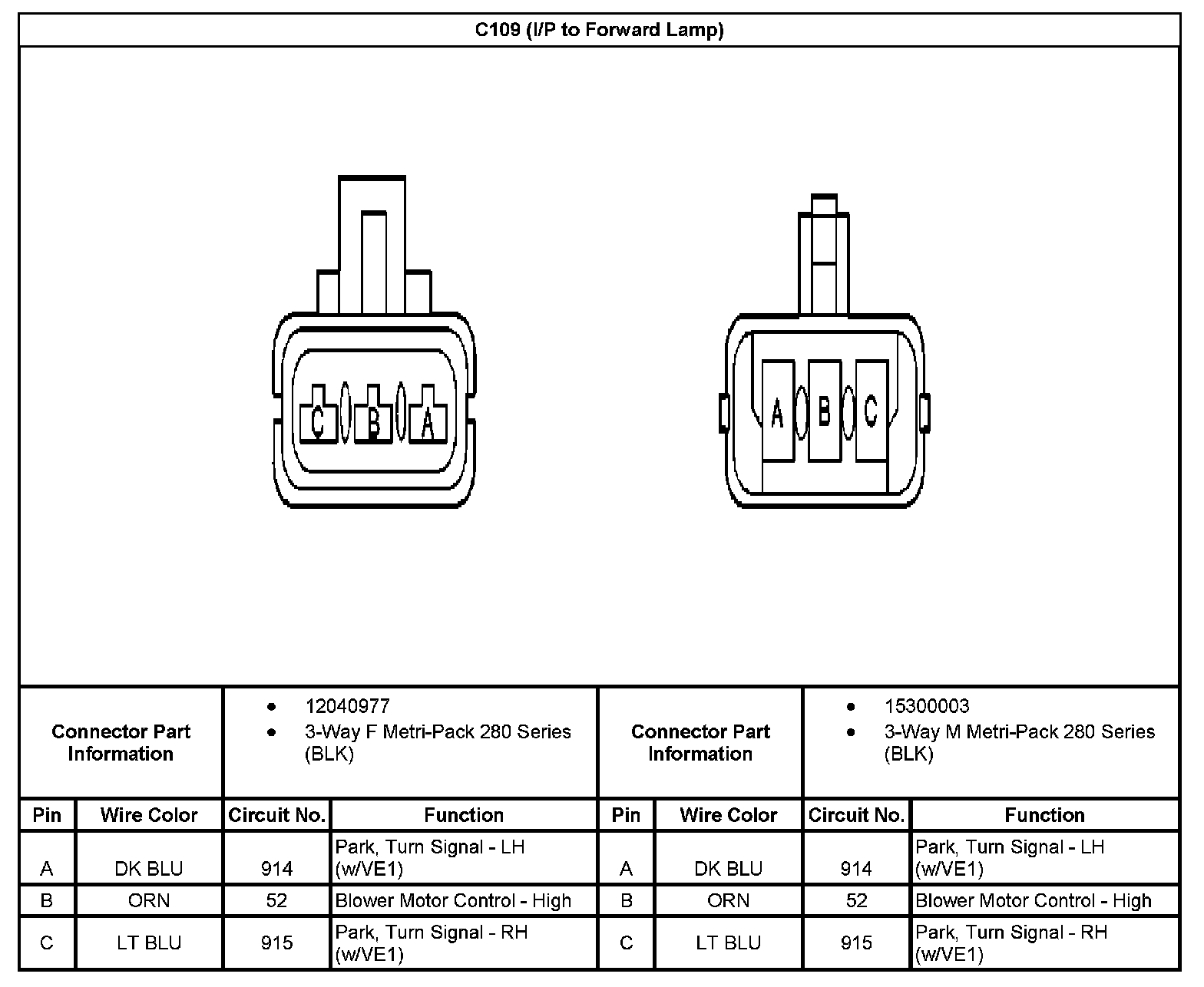

C109 (I/P To Forward Lamp):
