Home
>>
Chevy Truck
>>
2005
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200 - C299
>>
C212
C212

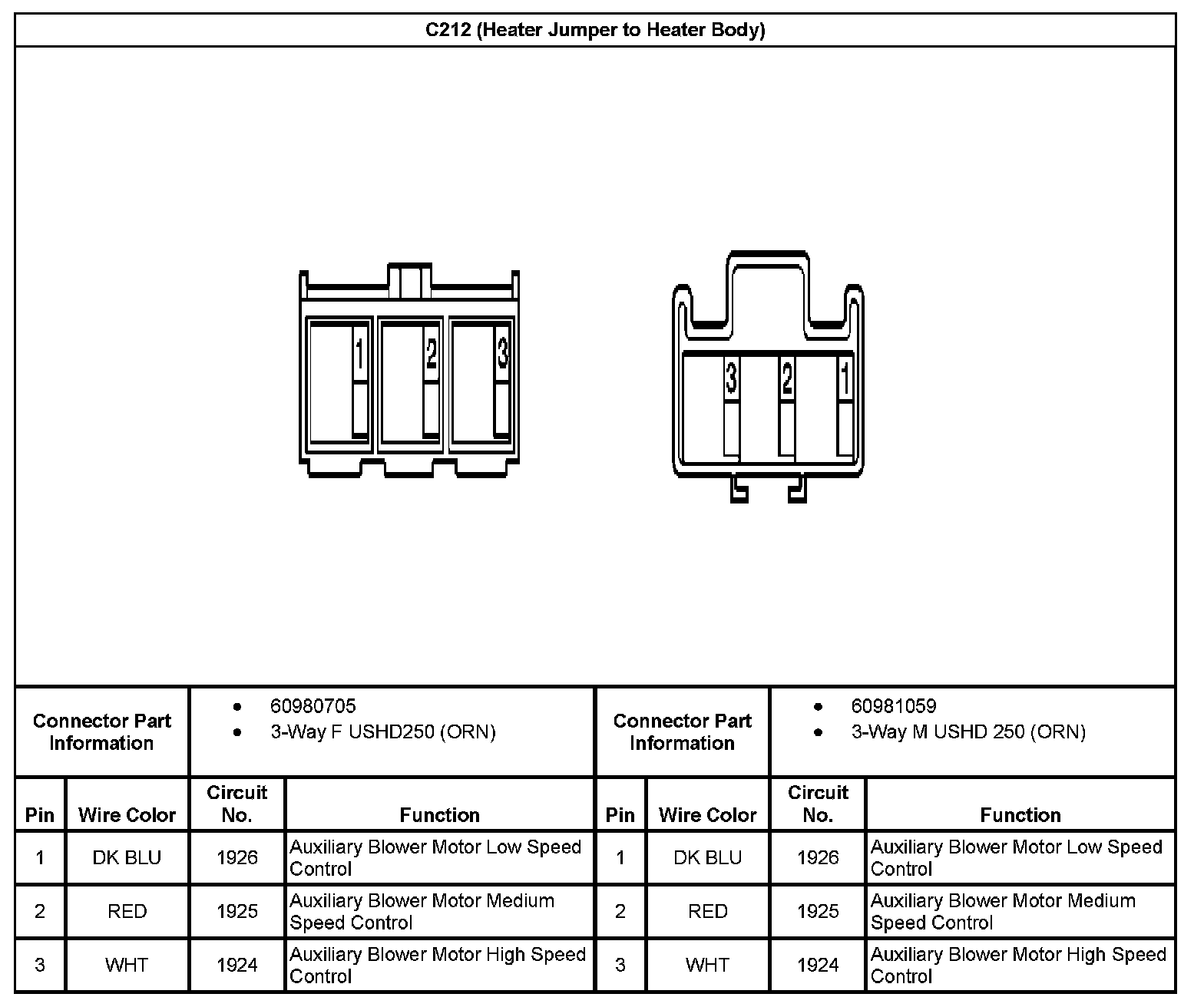

C212 (Heater Jumper To Heater Body):
