Park Brake Cable Replacement - Left Rear

Park Brake Cable Replacement - Left Rear

Removal Procedure

1. Release the park brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.




3. Relieve the tension on the park brake cables by loosening the nut at the adjuster.
4. Disconnect the cable at the equalizer.




5. Remove the cable from the mounting bracket by depressing the locking tabs.

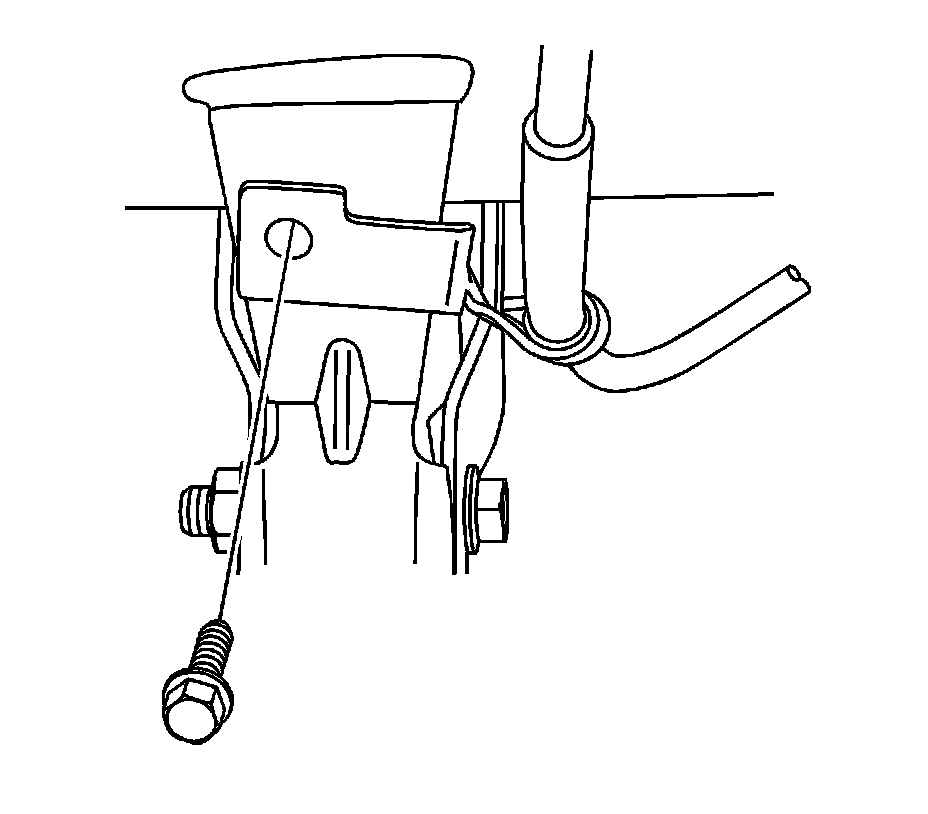

6. Remove the cable at the shock absorber bracket by removing the bolt.




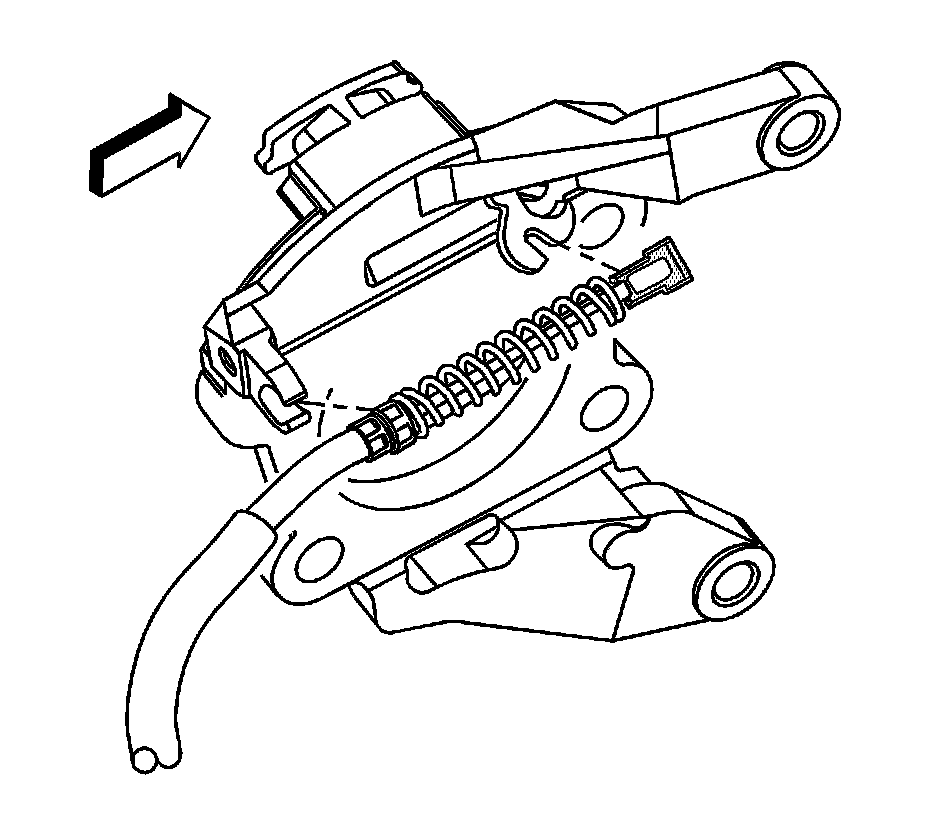

7. Remove the cable from the backing plate by depressing the locking tabs.
8. Remove the cable from the lever.
9. Remove the cable.



Installation Procedure





1. Install the cable taking care to correctly route the cable through the guide and the bracket.
2. Install the cable to the lever.
3. Install the cable to the backing plate by pressing the cable into place until locking tabs snap into place.





Notice: Refer toFastener Notice in Cautions and Notices.

4. Install the cable at the shock absorber bracket and install the bolt.

Tighten the bolt to 22 Nm (16 lb ft).





5. Install the cable to the mounting bracket until the locking tabs snap into place.




6. Connect cable end to the equalizer.
7. Remove the safety stands and lower the vehicle.
8. Adjust the park brake cable. Refer to Park Brake Adjustment (Adjustments) .
