Park Brake Cable Replacement - Front

Park Brake Cable Replacement - Front

Removal Procedure

1. Release the park brake.
2. Remove the cowl side panel trim. Refer toTrim Panel Replacement - Cowl Side in Interior Trim.
3. Remove the step trim plate. Refer toMat Replacement - Stepwell in Interior Trim.
4. Remove the park brake pedal. Refer to Park Brake Pedal Assembly Replacement (Service and Repair) .
5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
6. Loosen the park brake cable at the adjuster.
7. Remove the front park brake cable from the park brake cable adjuster.

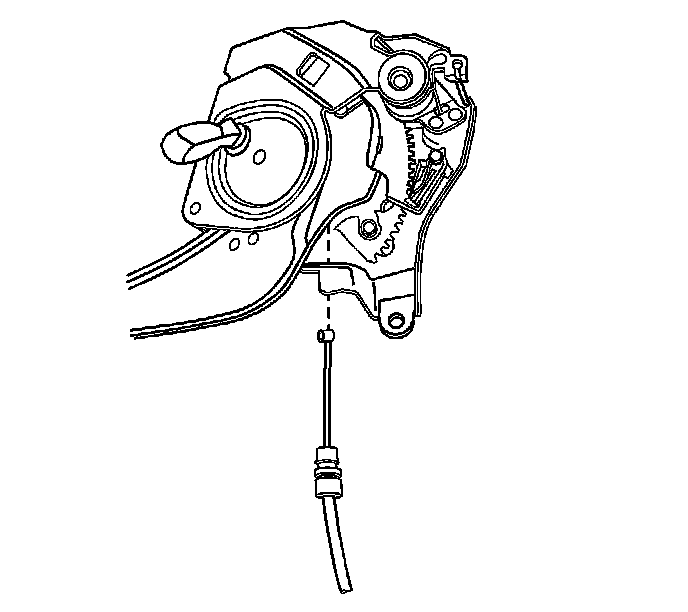

8. Remove the front cable from the pedal assembly.
9. Lower the vehicle.

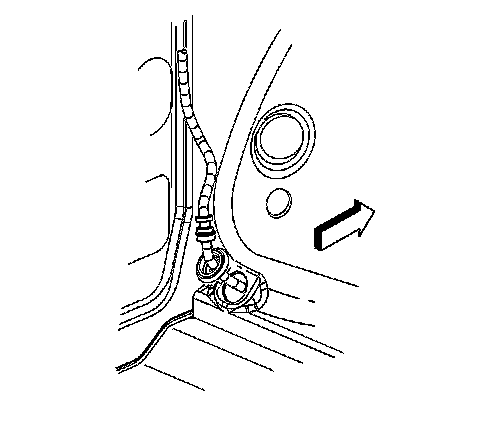

10. Roll the carpet back to remove the cable and grommet from the body.
11. Remove the cable from the vehicle.



Installation Procedure





1. Install the cable.
2. Route the cable through the floor pan and engage the grommet.




3. Install the front cable to the pedal assembly.
4. Install the pedal assembly. Refer to Park Brake Pedal Assembly Replacement (Service and Repair) .
5. Roll the carpet into place.
6. Install the step trim plate. Refer toMat Replacement - Stepwell in Interior Trim.
7. Install the cowl side panel trim. Refer toTrim Panel Replacement - Cowl Side in Interior Trim.
8. Raise the vehicle.
9. Connect the front cable to the park brake cable adjuster.
10. Adjust the park brake system. Refer to Park Brake Adjustment (Adjustments) .
11. Remove the safety stands and lower the vehicle.
