Park Brake Cable Mounting Bracket Replacement

Park Brake Cable Mounting Bracket Replacement

Removal Procedure





1. Release the parking brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
3. Disconnect the rear cables from the equalizer. Refer to Park Brake Cable Equalizer Replacement (Park Brake Cable Equalizer Replacement) .
4. Remove the rear cables from the mounting bracket by depressing the retaining tabs and pulling rearward.

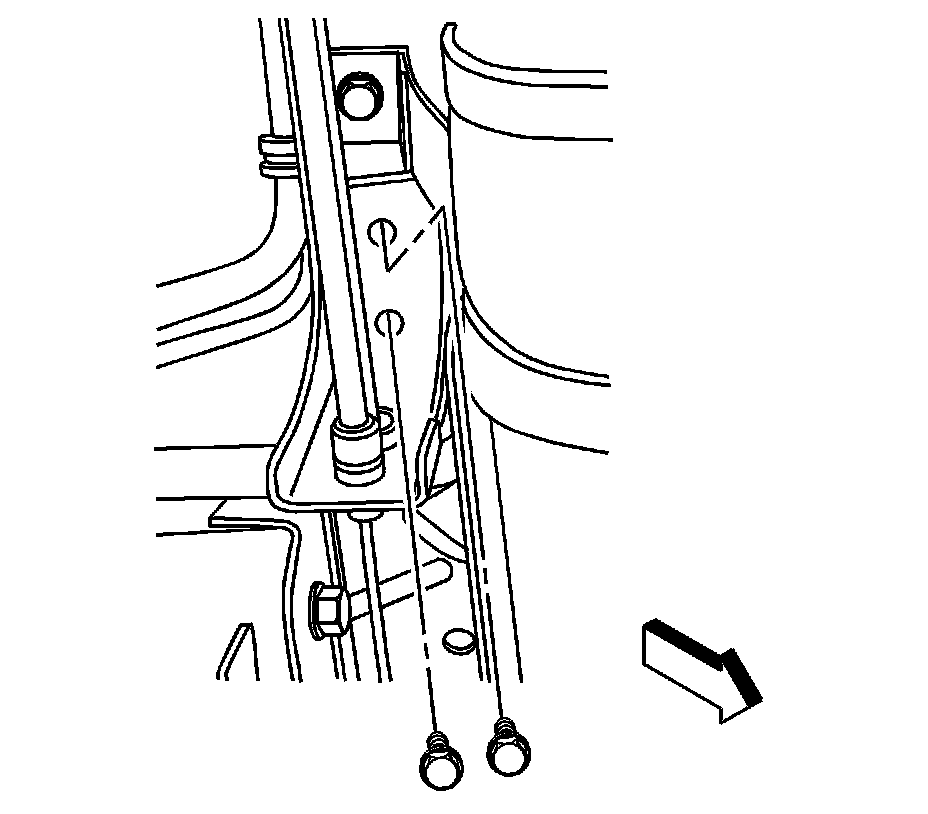

5. Remove the cable support bracket bolts.
6. Remove the cable support bracket.



Installation Procedure





1. Install the cable support bracket.

Notice: Refer toFastener Notice in Cautions and Notices.

2. Install the cable support bracket bolts.

Tighten the bolts to 24 Nm (18 lb ft).

3. Install the rear cables to the mounting bracket by inserting the cable until all the retaining tabs snap into place.
4. Connect the rear cables to the equalizer. Refer to Park Brake Cable Equalizer Replacement (Park Brake Cable Equalizer Replacement) .
5. Remove the safety stands and lower the vehicle.
