Park Brake Cable Guide Replacement

Park Brake Cable Guide Replacement

Removal Procedure

1. Release the parking brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

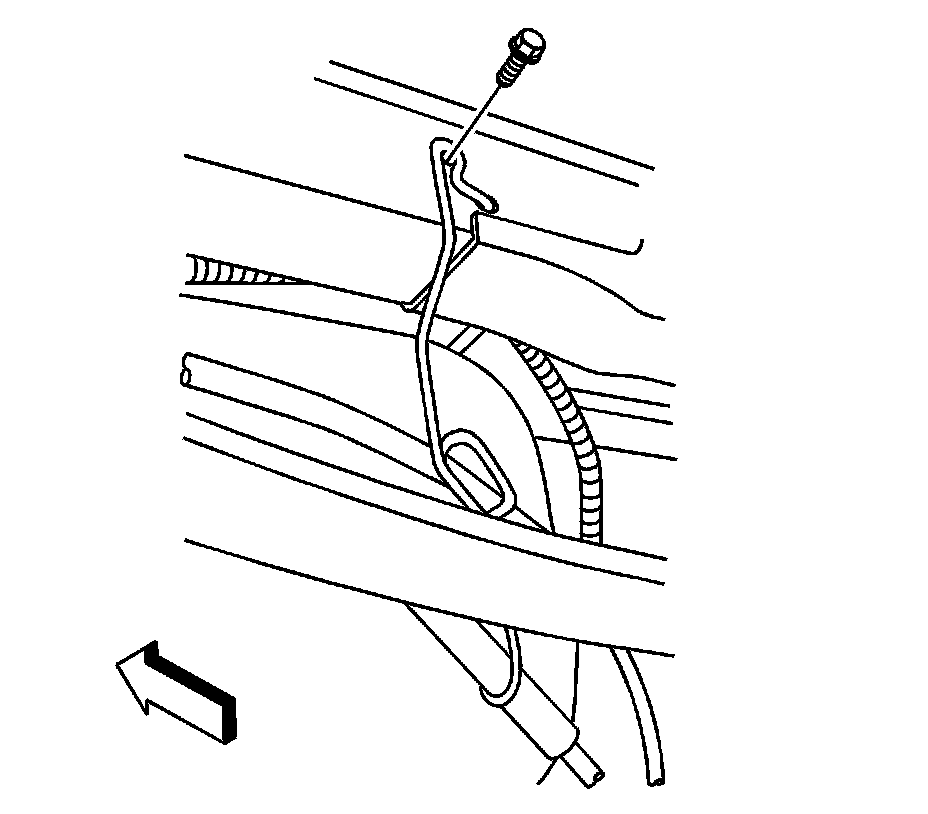

3. Remove the park brake cable guide bolt from the frame.
4. Remove the park brake cable guide.
5. Remove the park brake guide from the park brake cable.



Installation Procedure





1. Install the park brake cable guide to the park brake cable.
2. Install the park brake cable guide.

Notice: Refer toFastener Notice in Cautions and Notices.

3. Install the park brake cable guide bolt to the frame.

Tighten the bolt to 13 Nm (115 lb in).

4. Remove the safety stands and lower the vehicle.
