Chevy Truck
>>
2005
>>
Astro Van 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
Connector Views

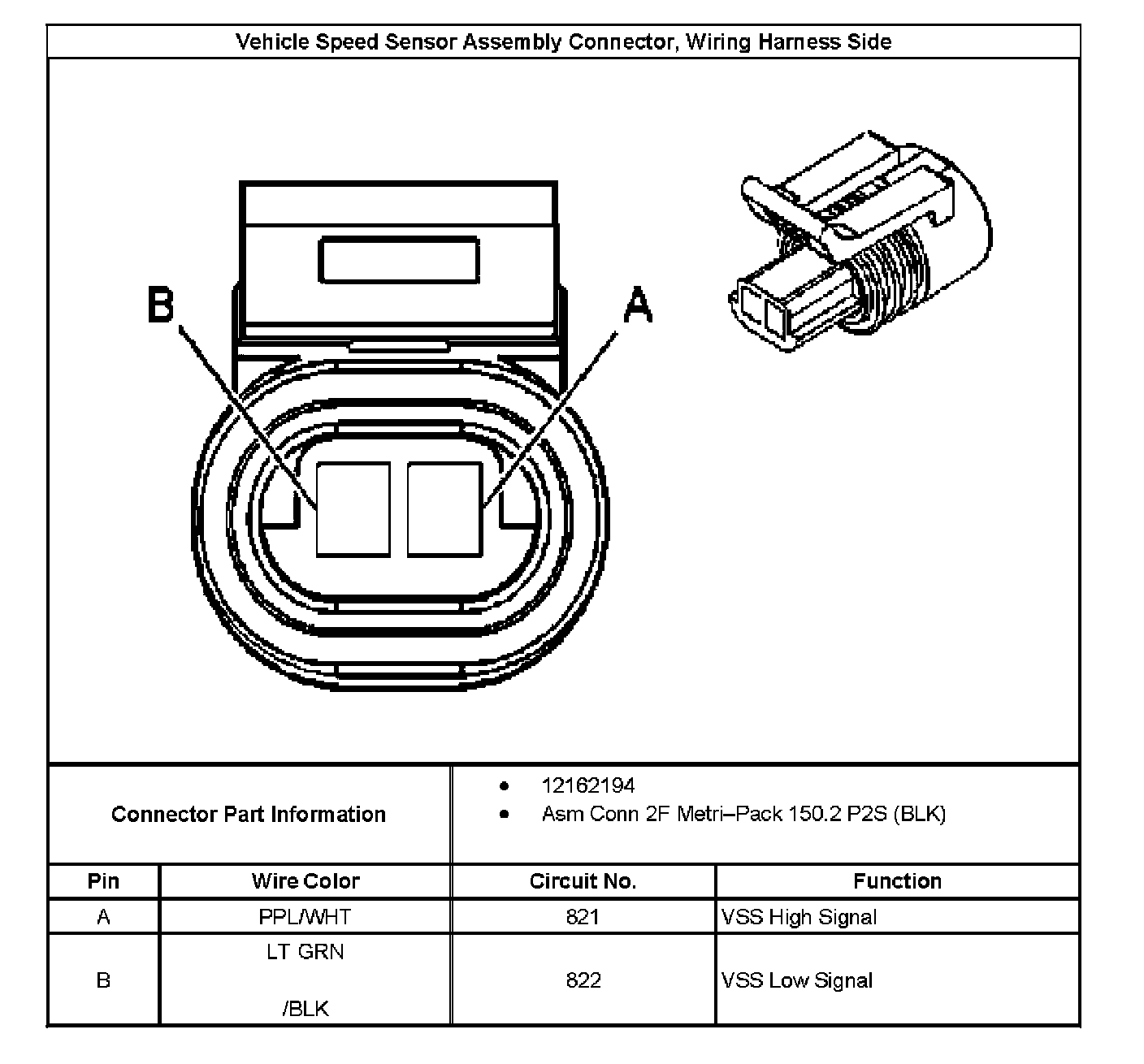

Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side:
